產(chǎn)品中心
LTE 4G Panel Antenna
1710-2700MHz 8DBI MIMO panel antenna
  • Name：

    1710-2700MHz 8DBI MIMO panel antenna

  • Model No.：

    G11216A

  • Frequency Range ：

    1710-2700MHz

  • Gain：

    2*8DBi

  • Cable Length：

    2*30CM RG58U

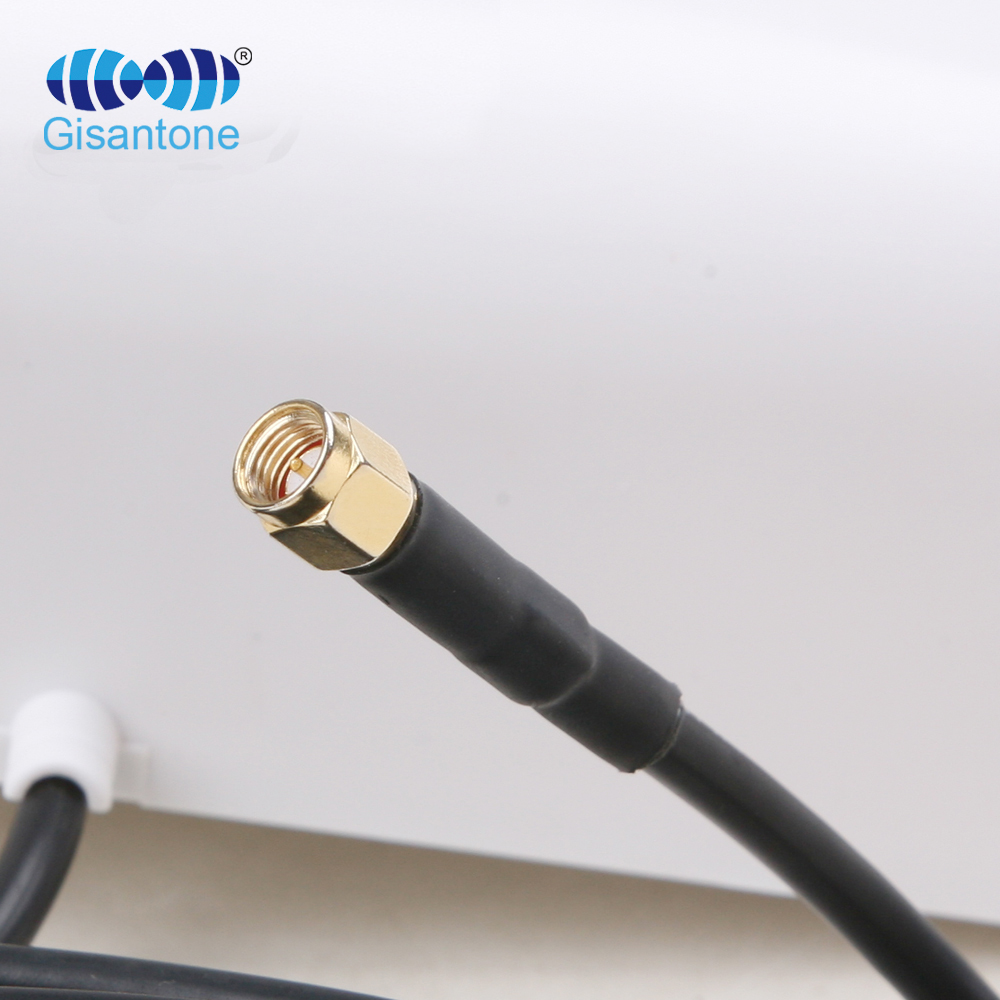

  • Connector：

    2*SMA male

Share：
Product parameters
Download

Electrical Specifications

Model No.

G11216A

Frequency Range

1710-2700MHz

Gain

2*8Dbi

VSWR

≤2.0

Input Impedance

50Ω

Polarization

± 450

Front to Back Ratio

≥23dB

Isolation

≥-28dB

Horizontal Half Power Angle

90°±5

Vertical Half Power Angle

75°±2

Max Input Power

50W

Lightning Protection

DC Ground

Mechanical Specifications

Connector Type

2*SMA male

Cable Type

RG58/U

Cable Length

0.3M

Working Temperature

-40℃~﹢65℃

Antenna Weight

1kg

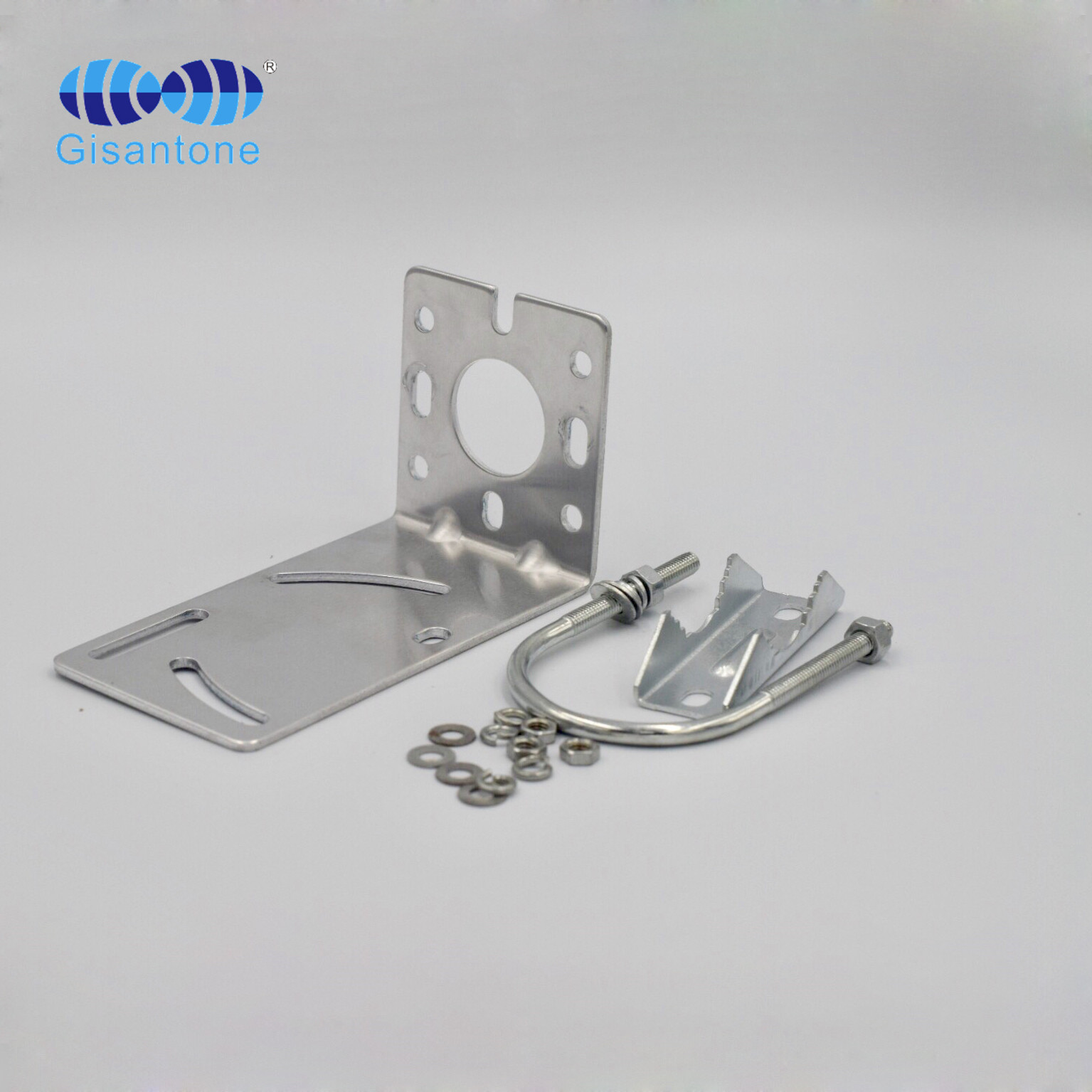

Pole Diameter

Φ35~φ55mm

Size

280*180*60mm

Rated Wind Velocity

210km/h

Antenna cover material

ABS
