產(chǎn)品中心

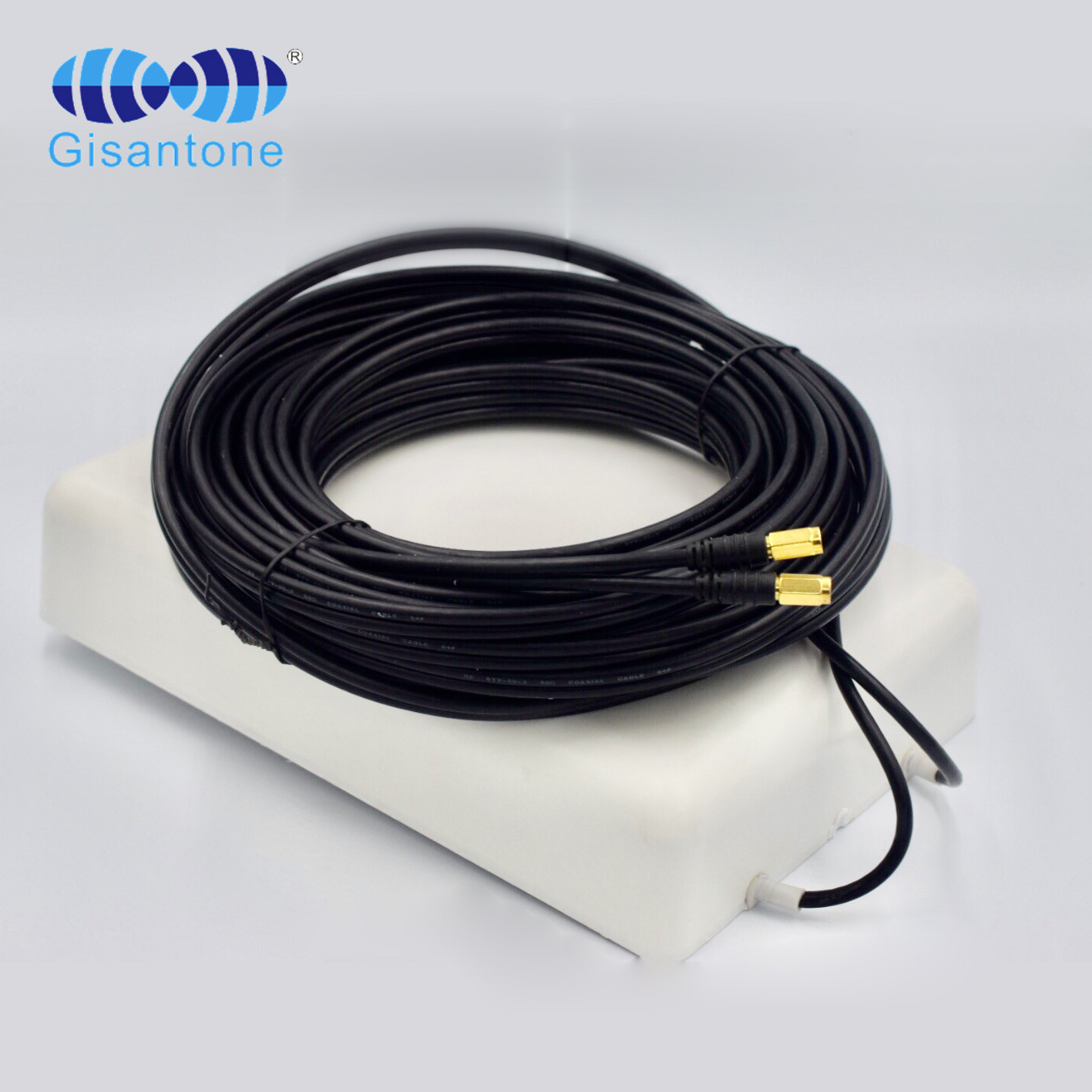

LTE 4G Panel Antenna
698/2700MHz 8DBi MIMO panel antenna
  • Name：

    698/2700MHz 8DBi MIMO panel antenna

  • Model No.：

    G11509J

  • Frequency Range ：

    698-960/1710-2700MHz

  • Gain：

    2*7/8DBI

  • Cable Length：

    2*15M RG58U

  • Connector：

    2*SMA male

Share：
Product parameters
Download

Electrical Specifications

Model No.

G11509J

Frequency Range

698-960MHz

1710-2700MHz

Gain

7Dbi

8Dbi

VSWR

≤1.5

Input Impedance

50Ω

Polarization

±45°

Front to Back Ratio

≥12dB

≥20dB

Horizontal Half Power Angle

75°

65°±8

Vertical Half Power Angle

70°

60°±5

Max Input Power

50W

Lightning Protection

DC Ground

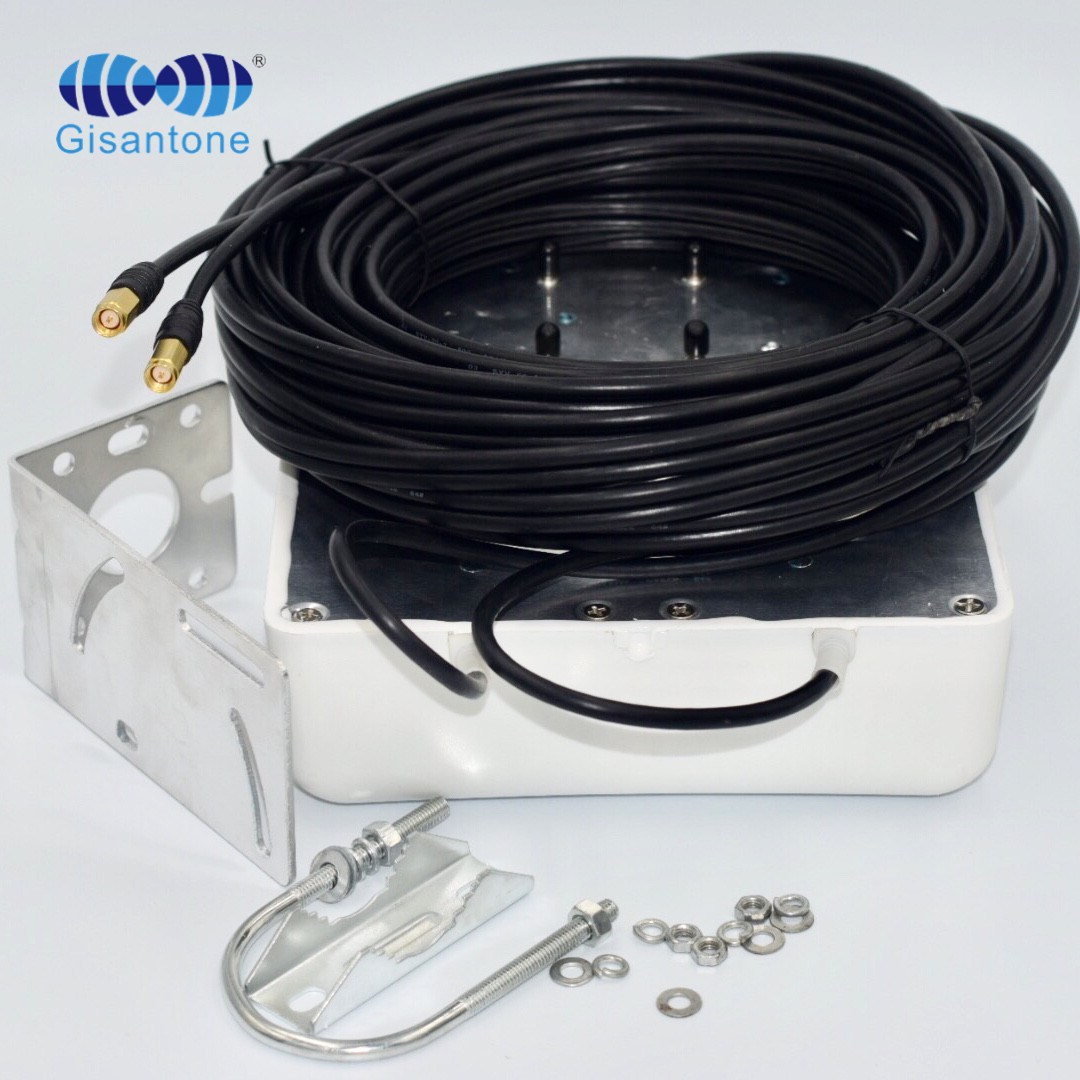

Mechanical Specifications

Connector Type

2*SMA male

Cable Type

2*RG58U Black

Cable Length

2*15M

Working Temperature

-40℃~﹢65℃

Antenna Weight

1.7kg

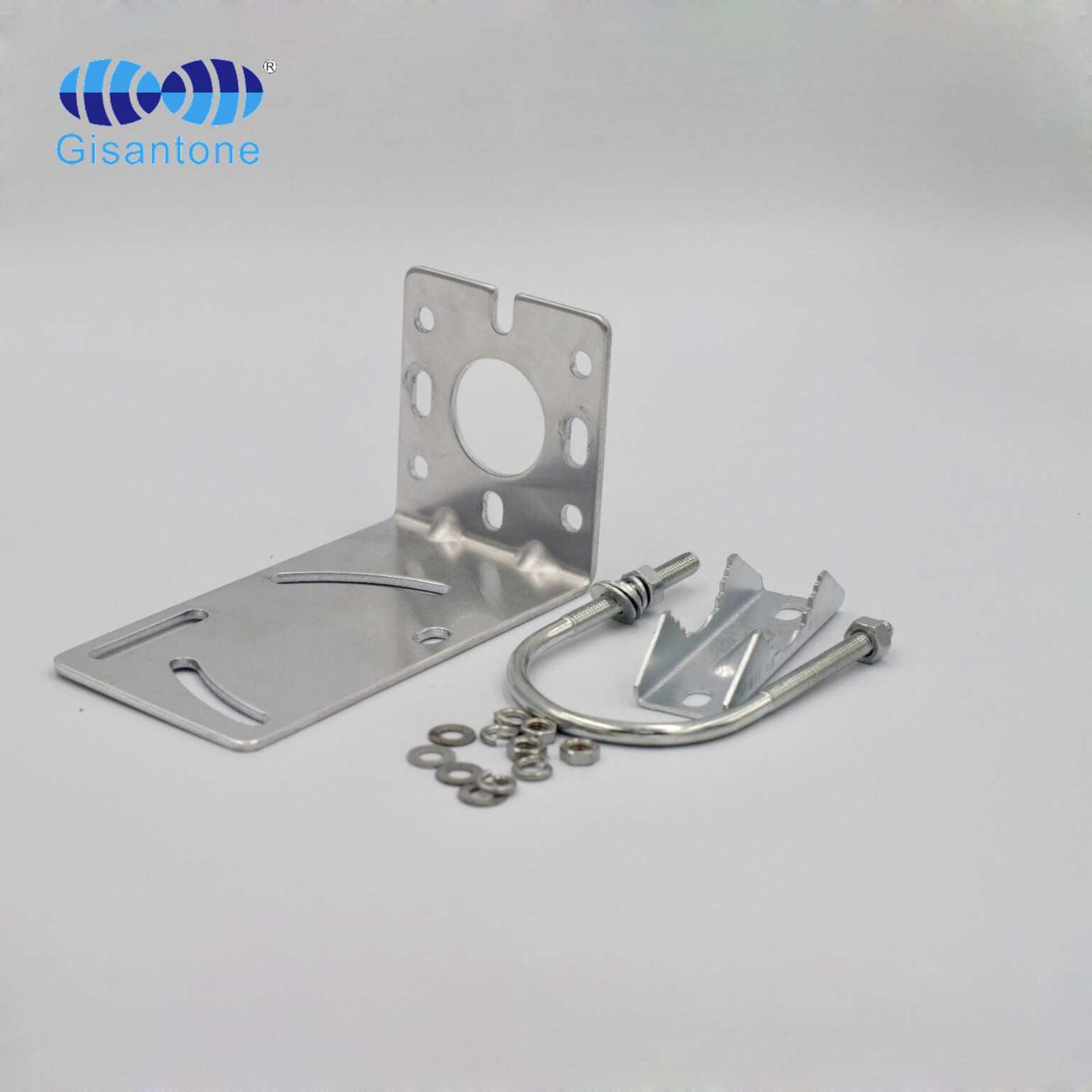

Pole Diameter

Φ35~φ55mm

Size

280*180*60mm

Rated Wind Velocity

210km/h

Antenna cover material

ABS
