LTE 4G Panel Antenna

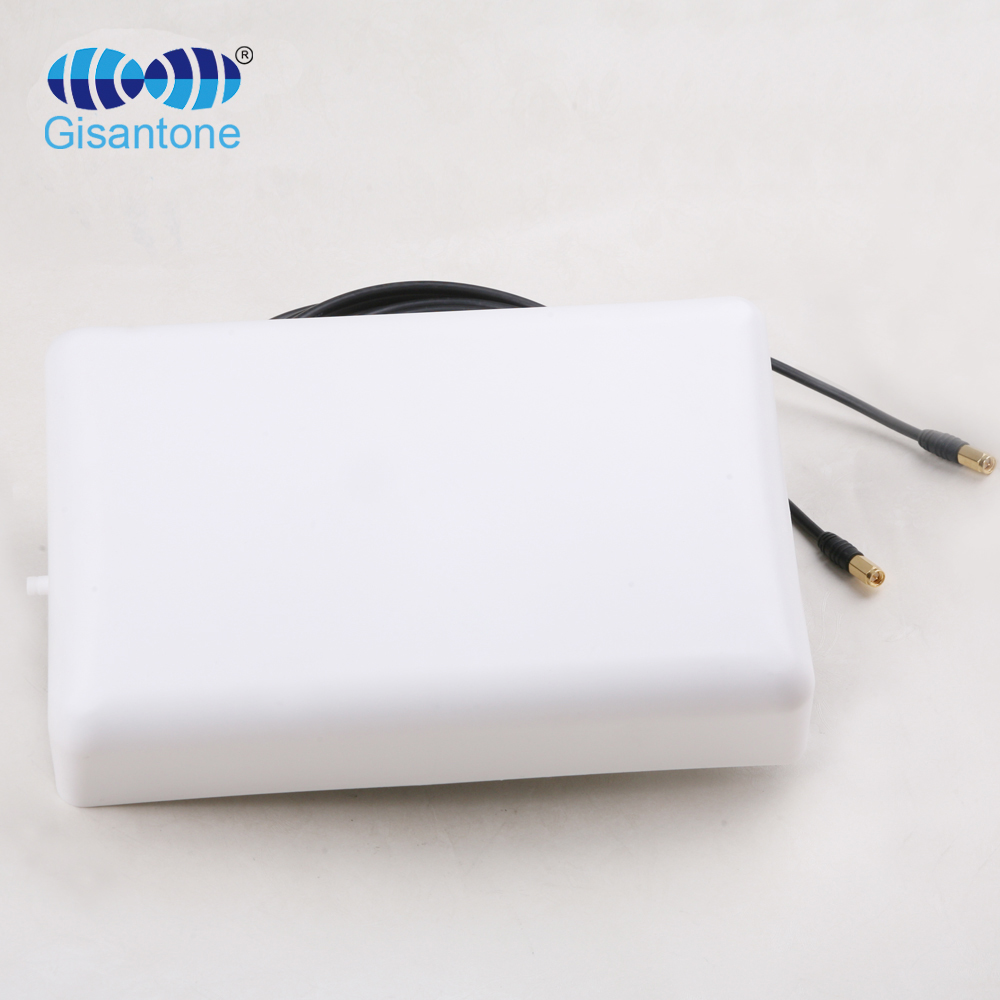

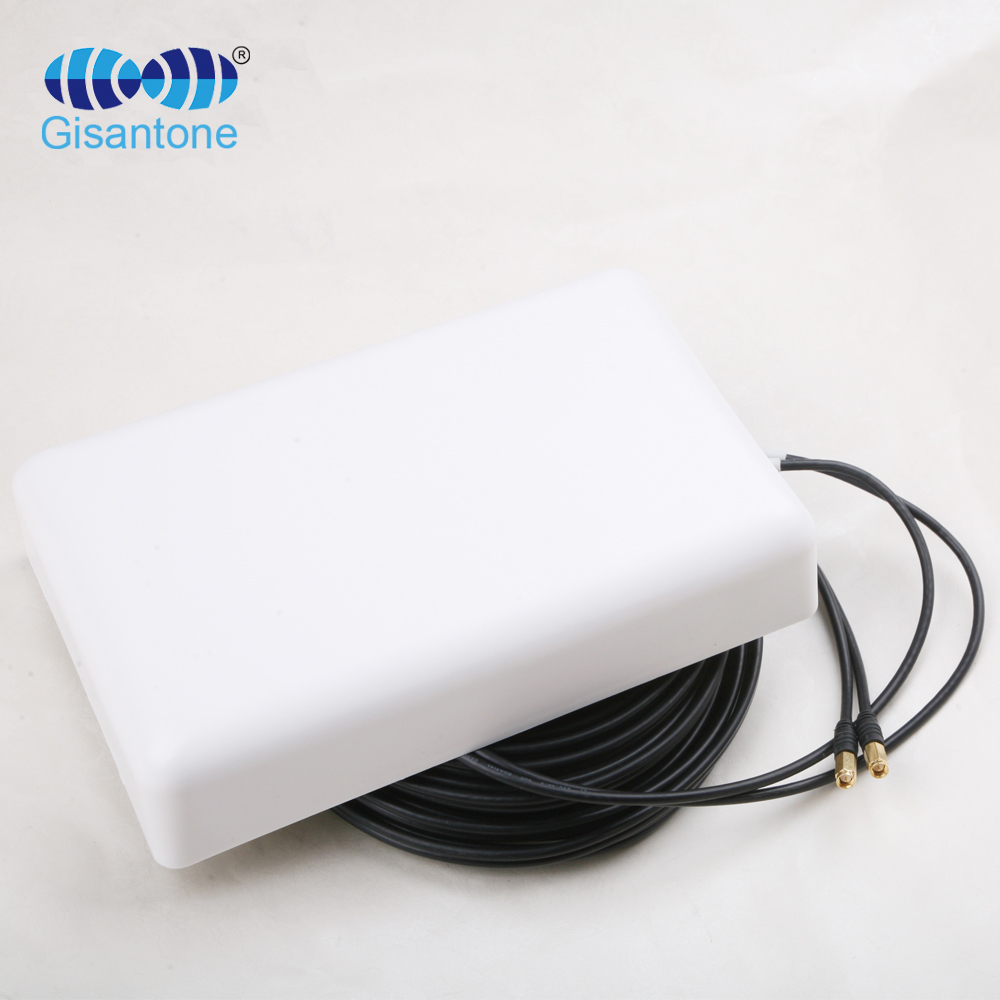

698/2700MHz 6DBi MIMO panel antenna
  • Name：

    698/2700MHz 6DBi MIMO panel antenna

  • Model No.：

    G11509A

  • Frequency Range ：

    698-960/1710-2700MHz

  • Gain：

    2*6/8DBI

  • Cable Length：

    2*30CM RG58U

  • Connector：

    2*SMA male

Share：
Product parameters
Download

Electrical Specifications

Model No.

G11509A

Frequency Range

698-960MHz

1710-2700MHz

Gain

6Dbi

8Dbi

VSWR

≤1.5

Input Impedance

50Ω

Polarization

Vertical

Horizontal

Front to Back Ratio

≥12dB

≥20dB

Horizontal Half Power Angle

90°±8

65°±8

Vertical Half Power Angle

80°±5

60°±5

Max Input Power

50W

Lightning Protection

DC Ground

Mechanical Specifications

Connector Type

2*SMA male

Cable Type

RG58U Black

Cable Length

0.3M

Working Temperature

-40℃~﹢65℃

Antenna Weight

1.2kg

Pole Diameter

Φ35~φ55mm

Size

280*180*60mm

Rated Wind Velocity

210km/h

Antenna cover material

ABS
