產(chǎn)品中心
LTE 4G Panel Antenna

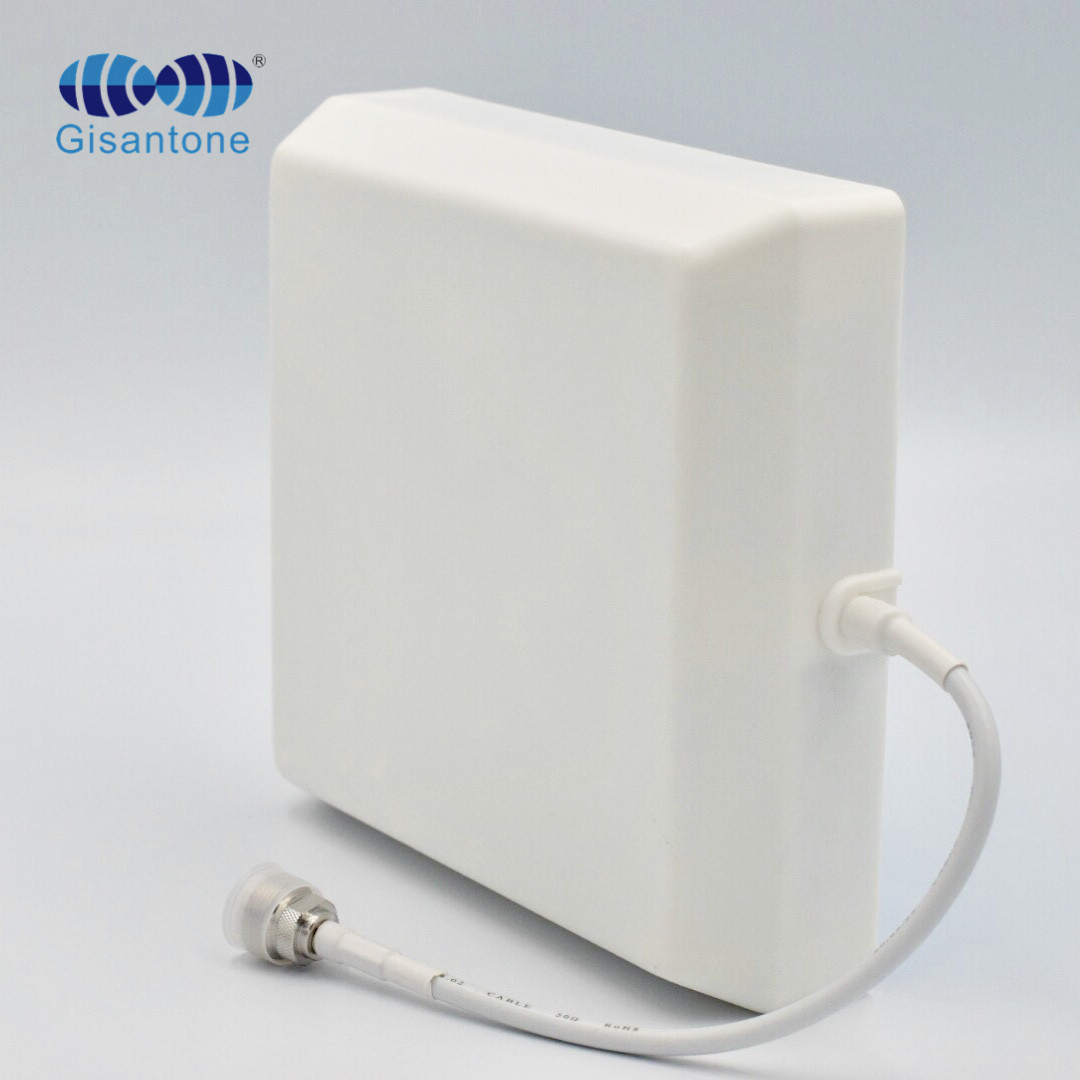

880-2635MHz 7/8DBI Panel Antenna
  • Name：

    880-2635MHz 7/8DBI Panel Antenna

  • Model No.：

    G15109A

  • Frequency Range ：

    880-960/1710-2635MHz

  • Gain：

    7/8DBI

  • Cable Length：

    30CM RG58U

  • Connector：

    N female

Share：
Product parameters
Download

Electrical Specifications

Model No.

G15109A

Frequency Range

880-960/1710-2635MHz

Gain

7Dbi

8Dbi

VSWR

≤1.5

Input Impedance

50Ω

Polarization

Vertical

Front to Back Ratio

≥18dB

Horizontal Half Power Angle

56°

120°

Vertical Half Power Angle

34°

80°

Max Input Power

50W

Lightning Protection

DC Ground

Mechanical Specifications

Connector Type

N-female

Cable Type

RG58/U

Cable Length

0.3M

Working Temperature

-40℃~﹢65℃

Antenna Weight

0.35kg

Pole Diameter

Φ35~φ55mm

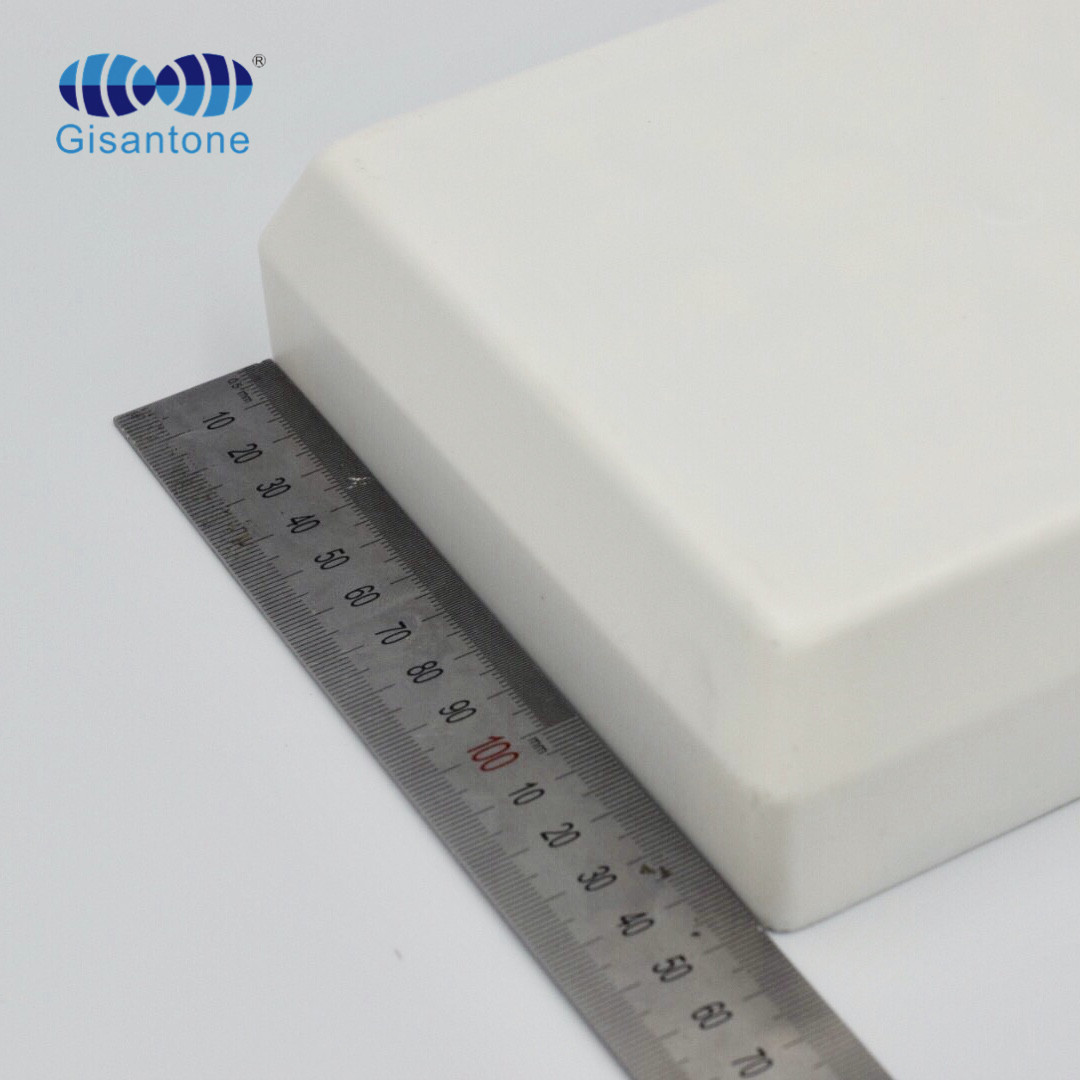

Size

165*155*45mm

Rated Wind Velocity

210km/h

Antenna cover material

ABS
