Electrical Specifications |
|
|
Model No. |
G15528C |
|
Frequency Range |
698-960/1710-2700MHz |
|
Gain |
5/7dBi |
|
VSWR |
≤2.0 |
|
Input Impedance |
50Ω |
|
Polarization |
Vertical |
|
Horizontal Half Power Angle |
360° |
|
Vertical Half Power Angle |
85° |
|
Max Input Power |
50W |
|
Lightning Protection |
DC Ground |
|
Mechanical Specifications |
|
|
Working Temperature |
-40℃~﹢65℃ |
|
Connector Type |
SMA-male |
|
Antenna Weight |
48g |
|
Size |
Φ14x(375±3)mm |
|
Color |
Black |
|
Package Size |
/ |
|
Weight |
/ |

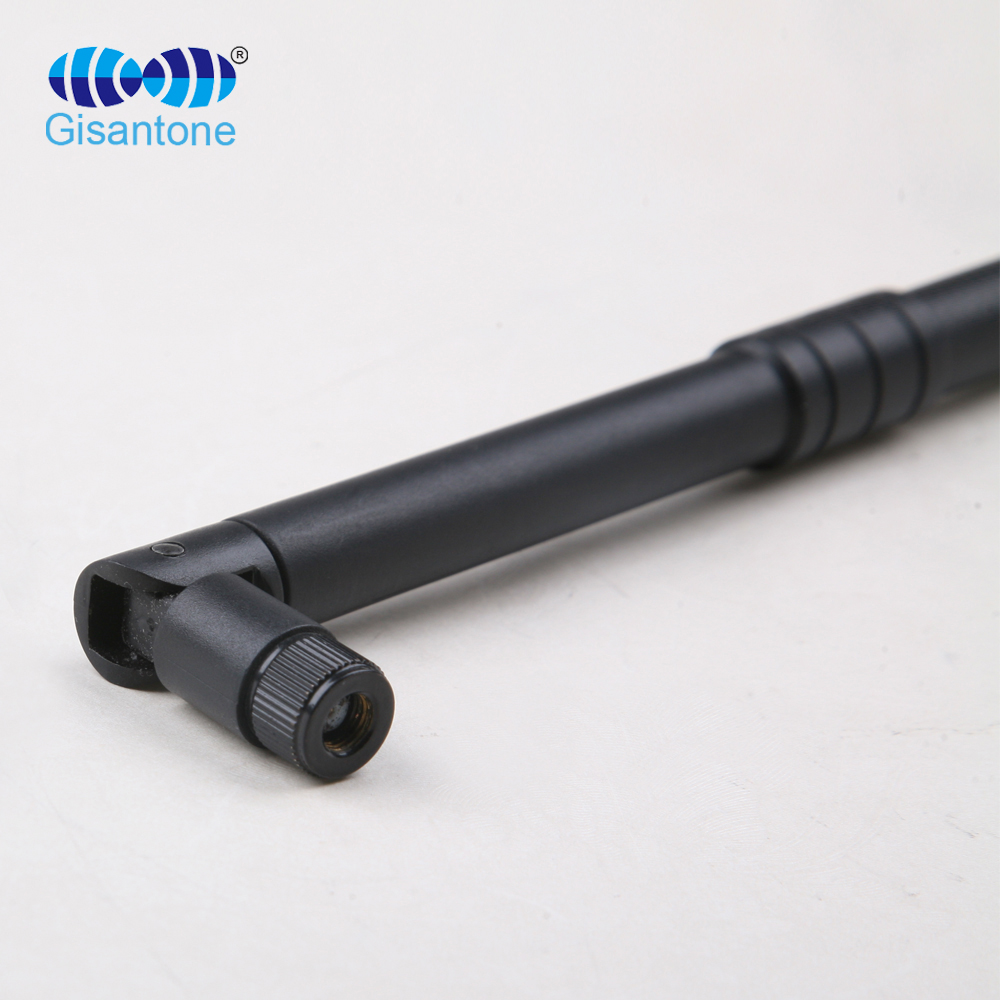

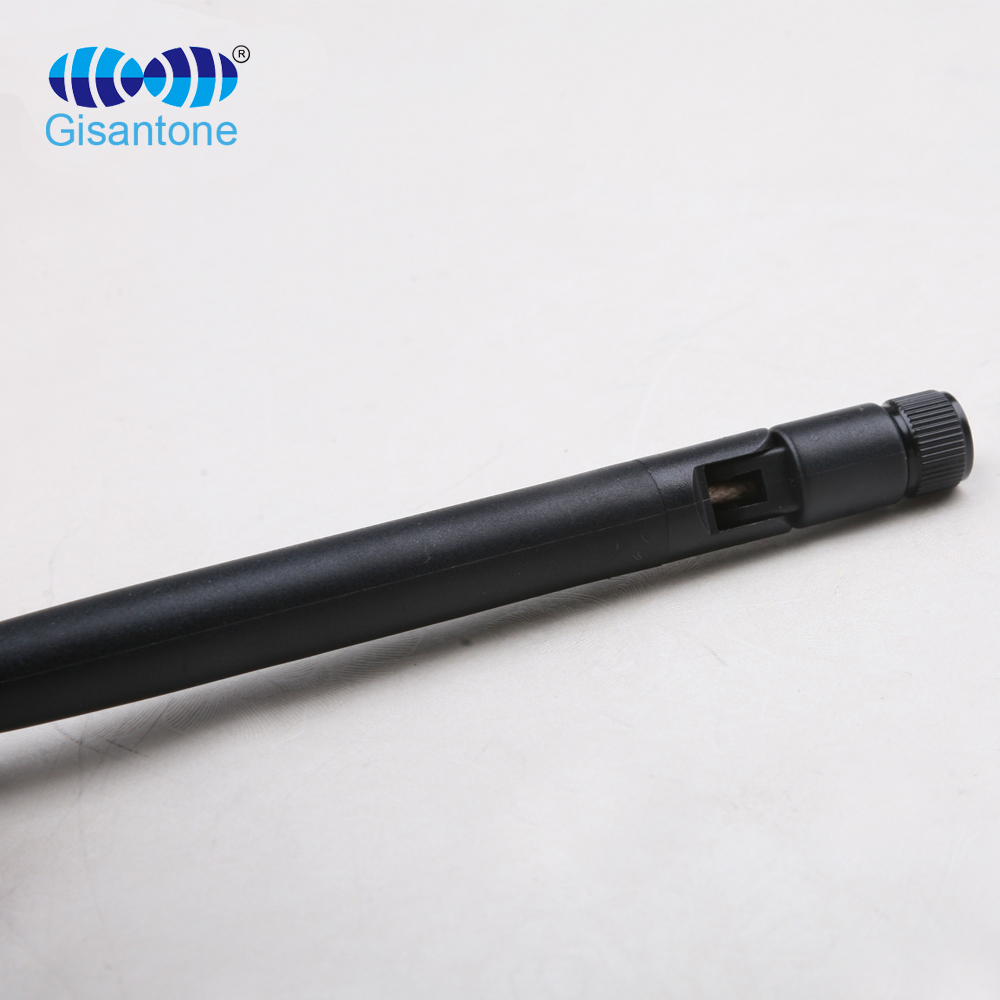

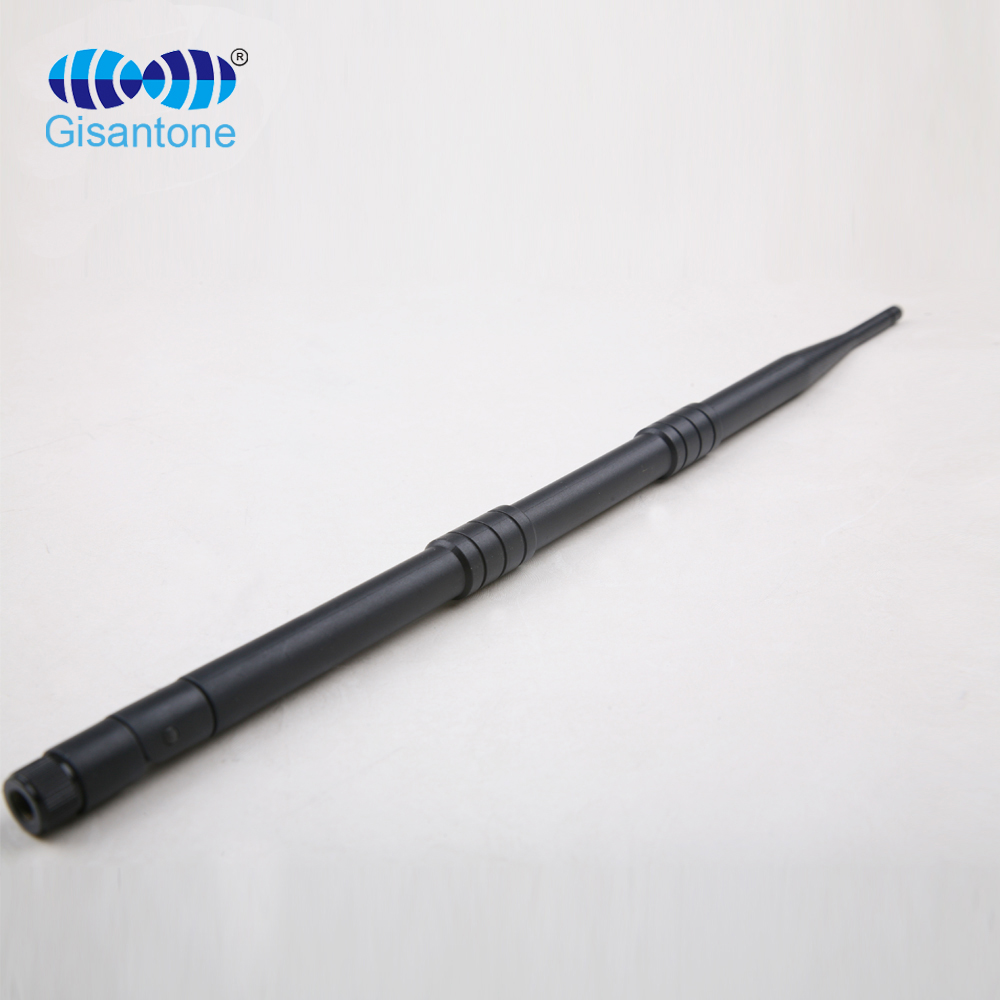

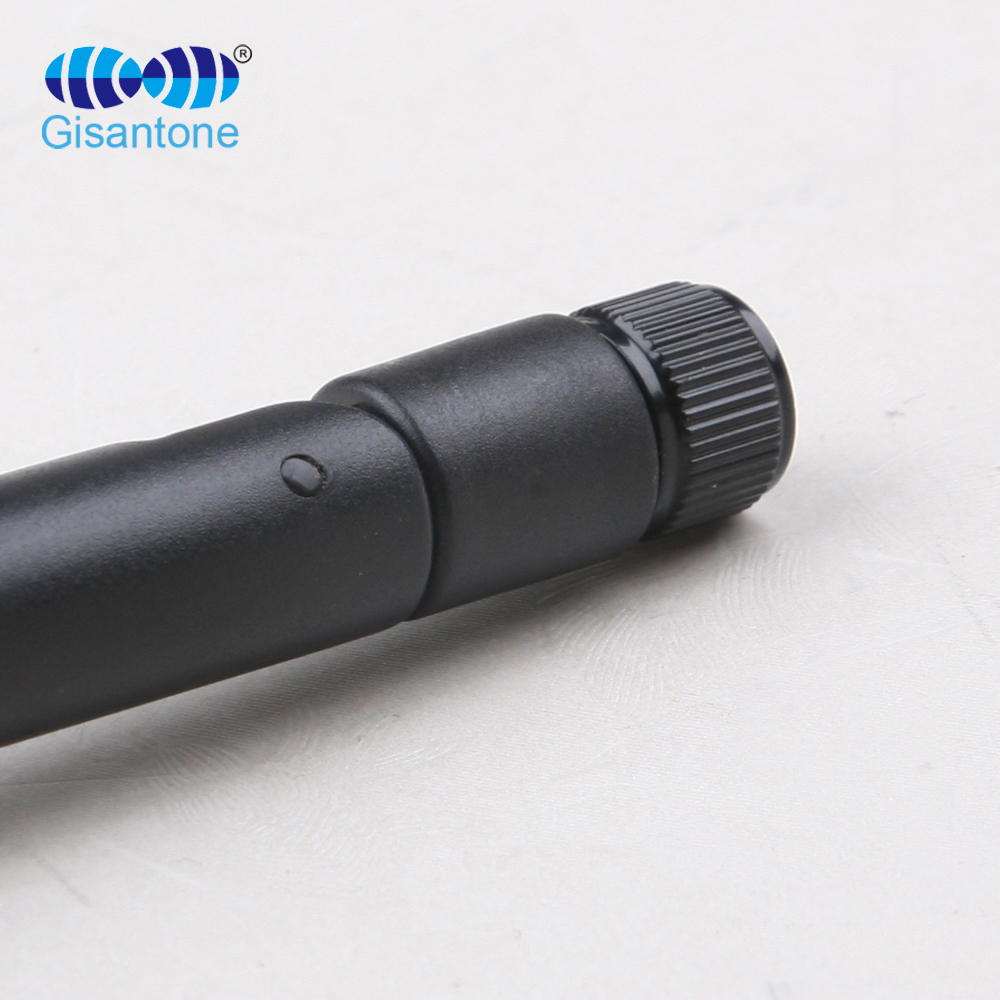

698/2700MHz 5/7DBI Whip antenna
