Electrical Specifications |
|
|
Model No. |
G15591D |
|
Frequency Range |
698-960/1710-2700MHz |
|
Gain |
2dBi |
|
VSWR |
≤2.0 |
|
Input Impedance |
50Ω |
|
Polarization |
Vertical |
|
Horizontal Half Power Angle |
360° |
|
Vertical Half Power Angle |
85° |
|
Max Input Power |
20W |
|
Lightning Protection |
DC Ground |
|
Mechanical Specifications |
|
|
Working Temperature |
-40℃~﹢65℃ |
|
Connector Type |
CRC9-male |
|
Antenna Weight |
46g |
|
Size |
Φ13.5*(185±5)mm |
|
Color |
Black |
|
Package Size |
/ |
|
Weight |
/ |

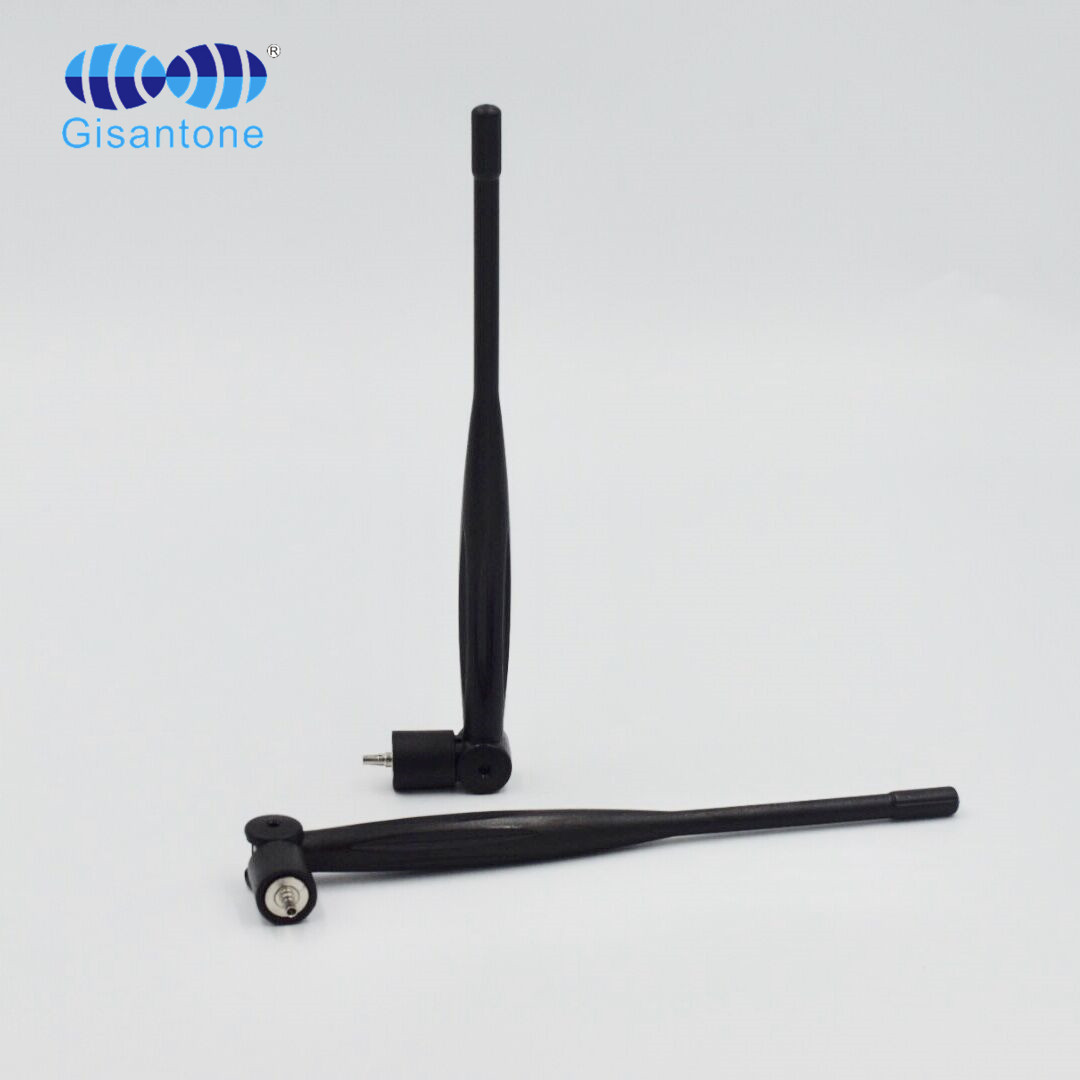

CRC9 port 4g lte rubber antenna
