5G Omni Antenna
- 名稱：

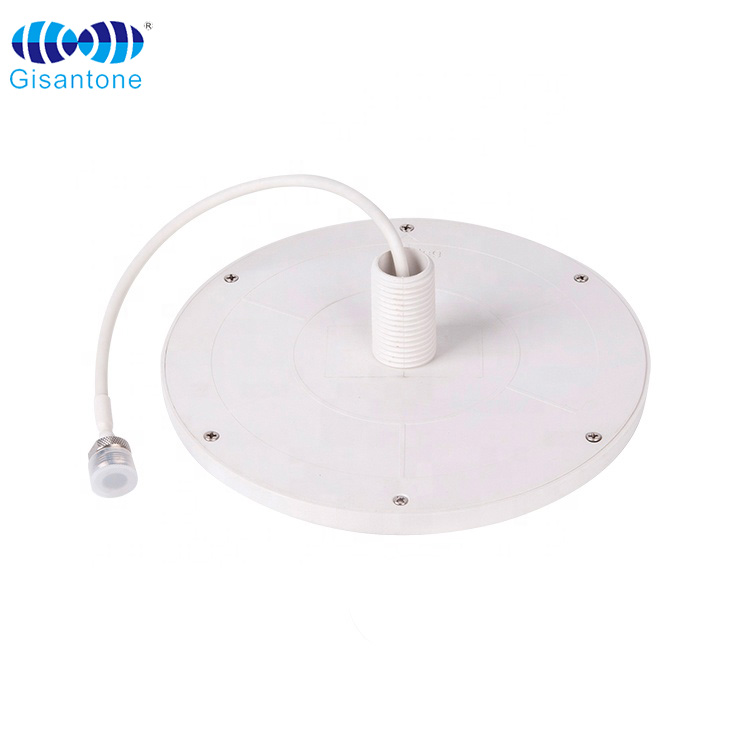

High Gain 5G 617-4000MHz Indoor Omni Ceiling Antenna for Hotspot Booster Amplifi
- 型號：
G15613A
- 頻率：
698-960/1710-2700/3400-3800MHz
- 增益：
3/5dBi
- 線長：
35CM
- 接頭：
N male/female
分享到：
產品參數
生產照片
文件下載
Electrical Specifications | ||||
Model No. | G15613A | |||
Frequency Range | 617-960MHz | 1710-2700MHz | 3300-4000MHz | |
Gain | 3.5±1dBi | 4.5±1dBi | 5±dBi | |
VSWR | ≤1.8 | ≤1.8 | ≤2.0 | |
PIM, 3rd Order, 2 x 20 W | ≤-153dBc | |||
Input Impedance | 50Ω | |||
Horizontal Half Power Angle | 360° | |||
Vertical Half Power Angle | 90±3° | 80±3° | 70±3° | |
Max Input Power | 50W | |||
Lightning Protection | DC Ground | |||
Mechanical Specifications | ||||
Connector Type | N-female | |||
Cable Type | RG141 | |||
Cable Length | 0.3M | |||
Working Temperature | -40℃~﹢65℃ | |||
Antenna Weight | 0.5kg | |||
Size | Φ220*17mm | |||
Rated Wind Velocity | 210km/h | |||
Antenna cover material | ABS | |||
Color | White | |||
High Gain 5G 617-4000MHz Indoor Omni Ceiling Antenna for Hotspot Booster Amplifi
