5G Panel Antenna
- 名稱：
5G MIMO 4 * N female High Gain Outdoor Panel Antenna Wireless signal coverage
- 型號：
G11123A
- 頻率：
698-4000MHz
- 增益：
6-7dBi
- 線長：
4*30CM RG141
- 接頭：
N male/female or Customzied
分享到：
產品參數
生產照片
文件下載
Electrical Specifications | |||||
Model No. | G11122A | ||||
Frequency Range | 698-960MHz | 1710-2700MHz | 3400-4000MHz | ||
Gain | 6dBi | 7dBi | 7dBi | ||
VSWR | ≤1.5 | ≤1.8 | ≤1.8 | ||
Input Impedance | 50Ω | ||||
Polarization | Horizontal + Vertical | ||||
Front to Back Ratio | ≥10dB | ≥13dB | ≥10dB | ||
Horizontal Half Power Angle | 90° | 65° | 45° | ||
Vertical Half Power Angle | 78° | 60° | 38° | ||
Max Input Power | 50W | ||||
Lightning Protection | DC Ground | ||||
Mechanical Specifications | |||||
Connector Type | 4*N female | ||||
Cable Type | 4*RG141 Bule | ||||
Cable Length | 4*30CM | ||||
Working Temperature | -40℃~﹢65℃ | ||||
Antenna Weight | 2.0kg | ||||
Pole Diameter | Φ35~φ55mm | ||||
Size | 410*180*60mm | ||||
Rated Wind Velocity | 210km/h | ||||
Antenna cover material | ABS | ||||

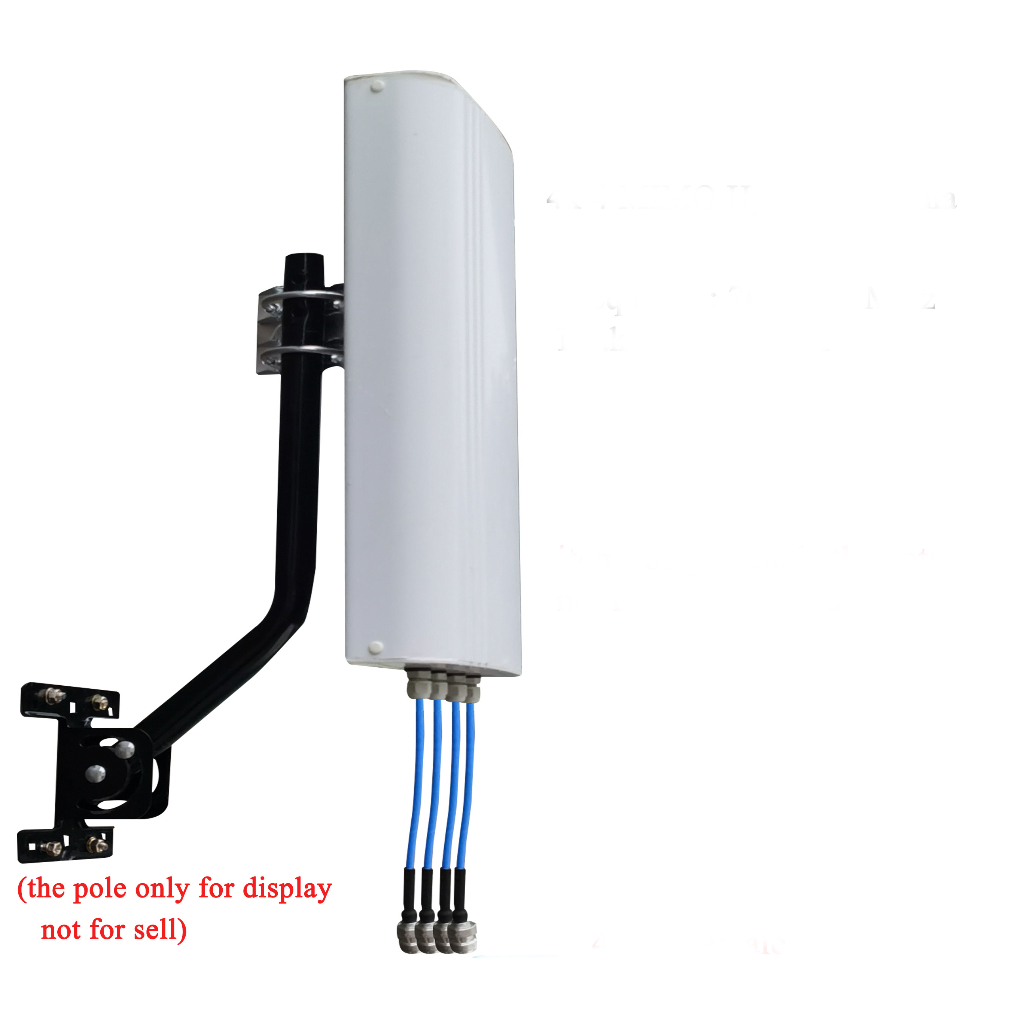

5G MIMO 4 * N female High Gain Outdoor Panel Antenna Wireless signal coverage
