Electrical Specifications |
|
|
Model No. |
G13224B |
|
Frequency Range |
470-862MHz |
|
Gain |
7Dbi |
|
VSWR |
≤3.0 |
|
Input Impedance |
75Ω |
|
Polarization |
Vertical &Horizontal |
|
Front to Back Ratio |
≥14dB |
|
Echo Loss |
-7dB |
|
Horizontal Half Power Angle |
85° |
|
Vertical Half Power Angle |
75° |
|
Max Input Power |
50W |
|
Lightning Protection |
DC Ground |
|
Mechanical Specifications |
|
|
Connector Type |

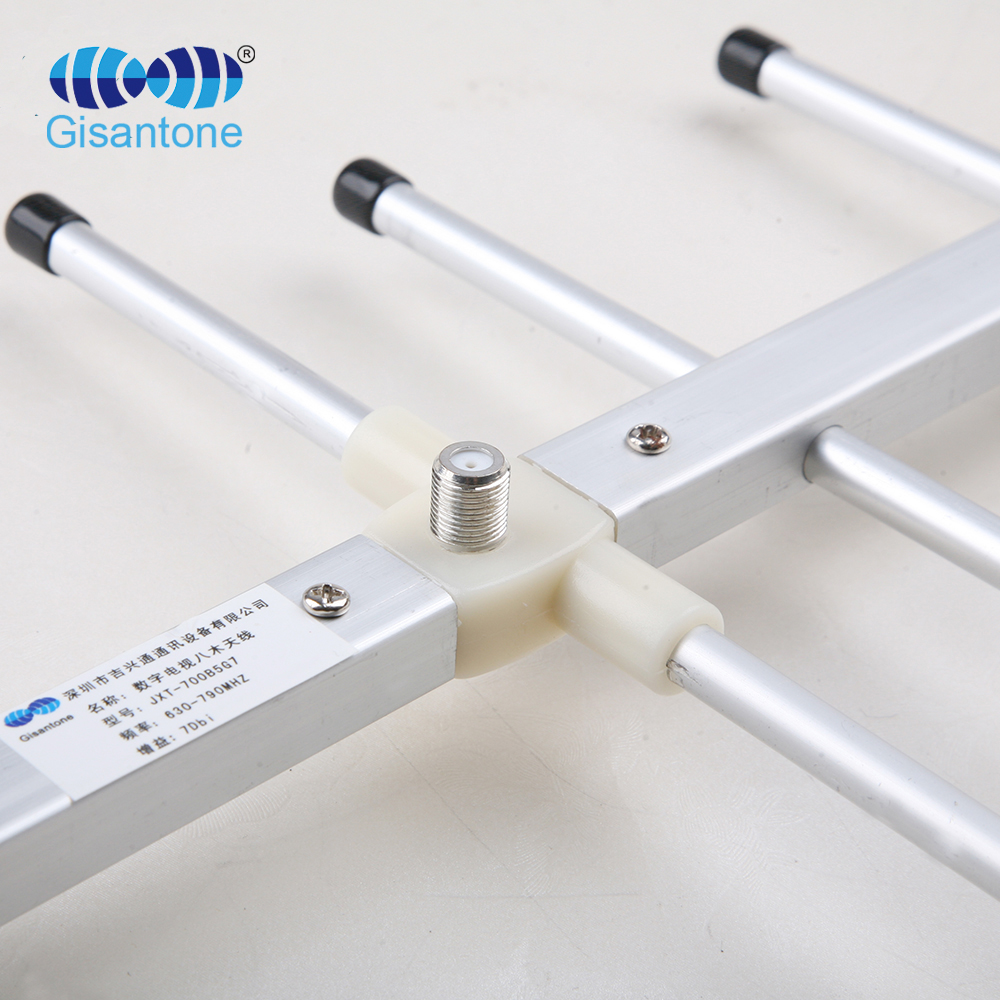

F-female |
|
Working Temperature |
-40℃~﹢65℃ |
|
Antenna Weight |
0.21kg |
|
Pole Diameter |
Φ35~φ55mm |
|
Size |
465*315*25mm |
|
Rated Wind Velocity |
210km/h |
|
Radiating Element |
5 |

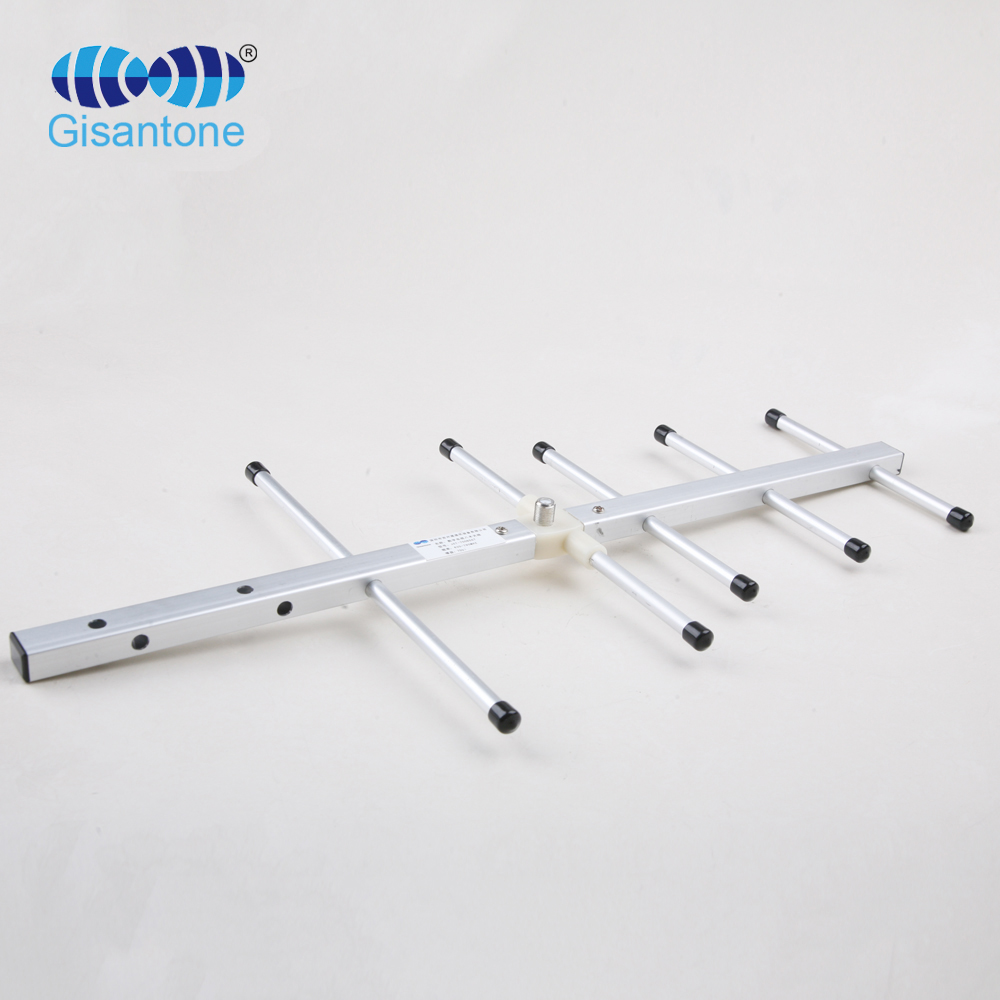

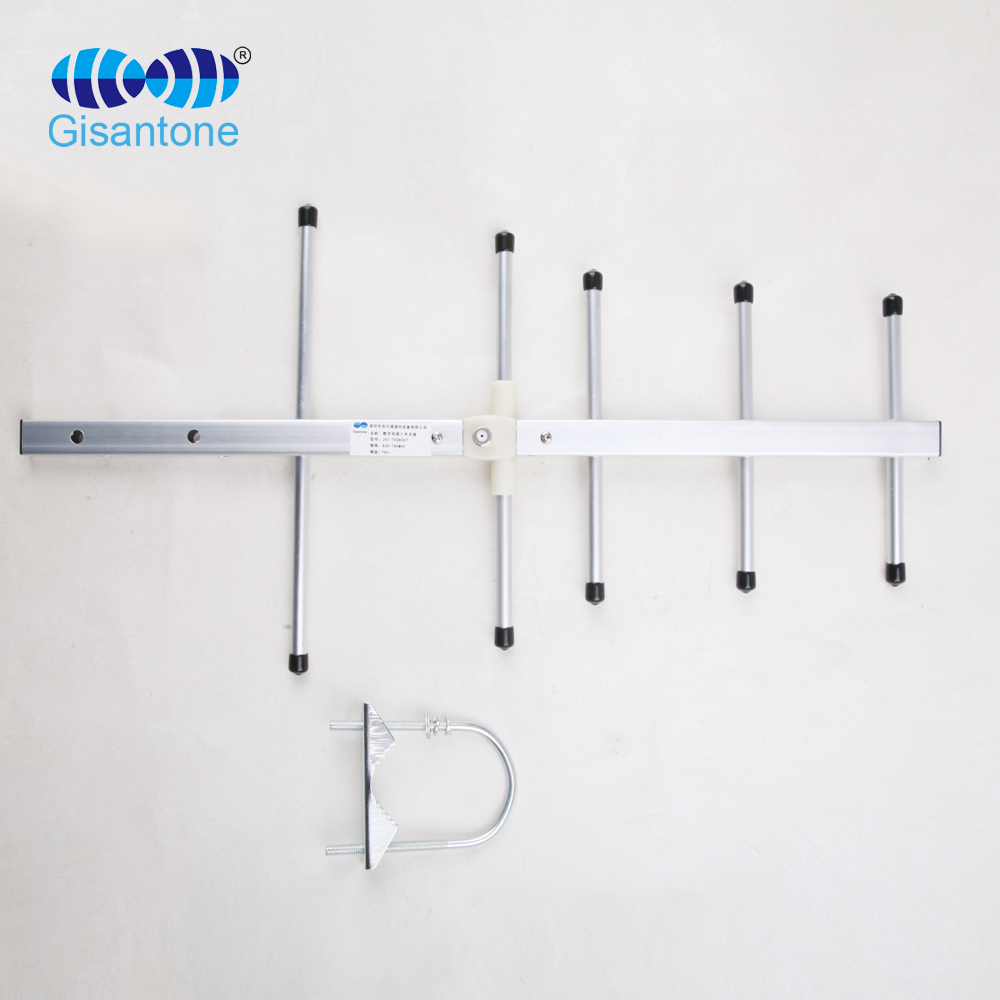

470-862MHz 7DBI TV Yagi antenna
