Electrical Specifications |
|
|
Model No. |
G13213C |
|
Frequency Range |
1710-2170MHz |
|
Gain |
12Dbi |
|
VSWR |
≤1.5 |
|
Input Impedance |
50Ω |
|
Polarization |
Vertical &Horizontal |
|
Front to Back Ratio |
≥15dB |
|
Horizontal Half Power Angle |
50° |
|
Vertical Half Power Angle |
45° |
|
Max Input Power |
100W |
|
Lightning Protection |
DC Ground |
|
Mechanical Specifications |
|
|
Connector Type |
N-female |
|
Cable Type |
RG58/U |
|
Cable Length |
30CM |
|
Working Temperature |
-40℃~﹢65℃ |
|
Antenna Weight |
350g |
|
Pole Diameter |
Φ35~φ55mm |
|
Size |
410*102*45mm |
|
Rated Wind Velocity |
210km/h |
|
Radiating Element |
9 |

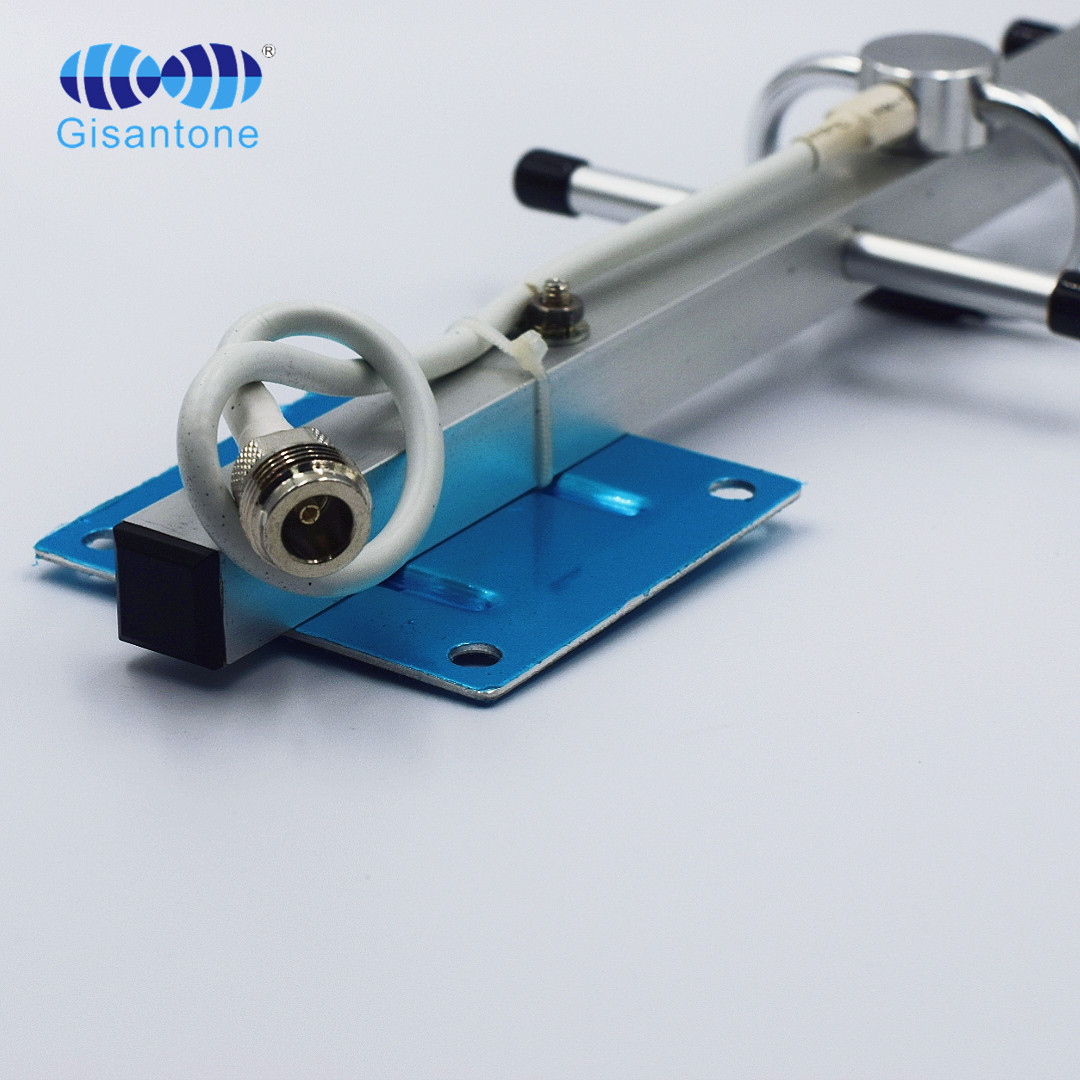

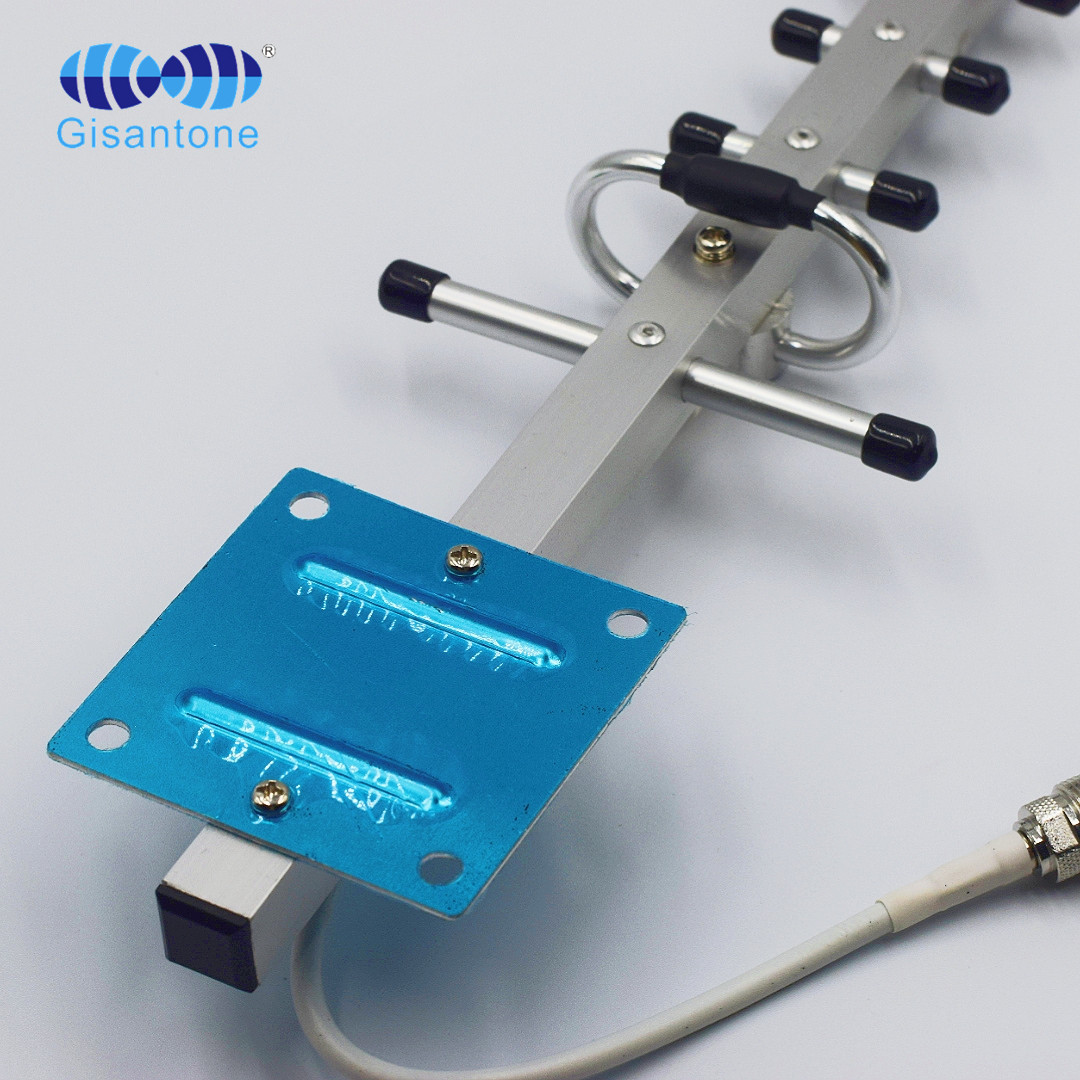

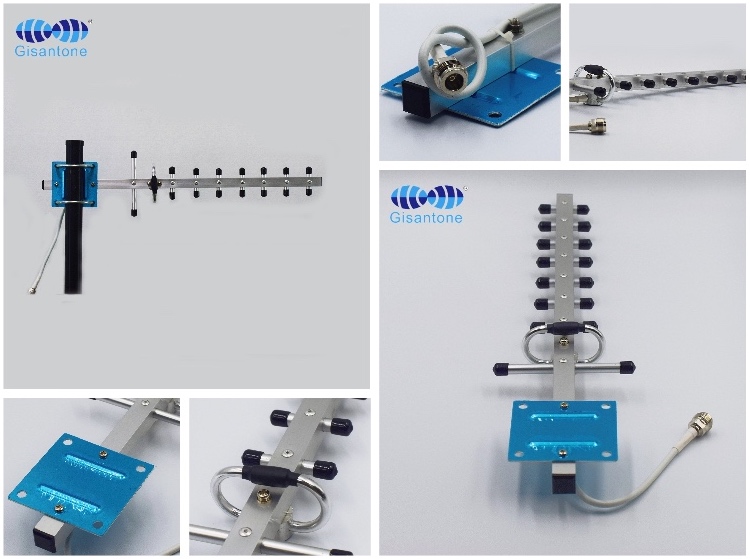

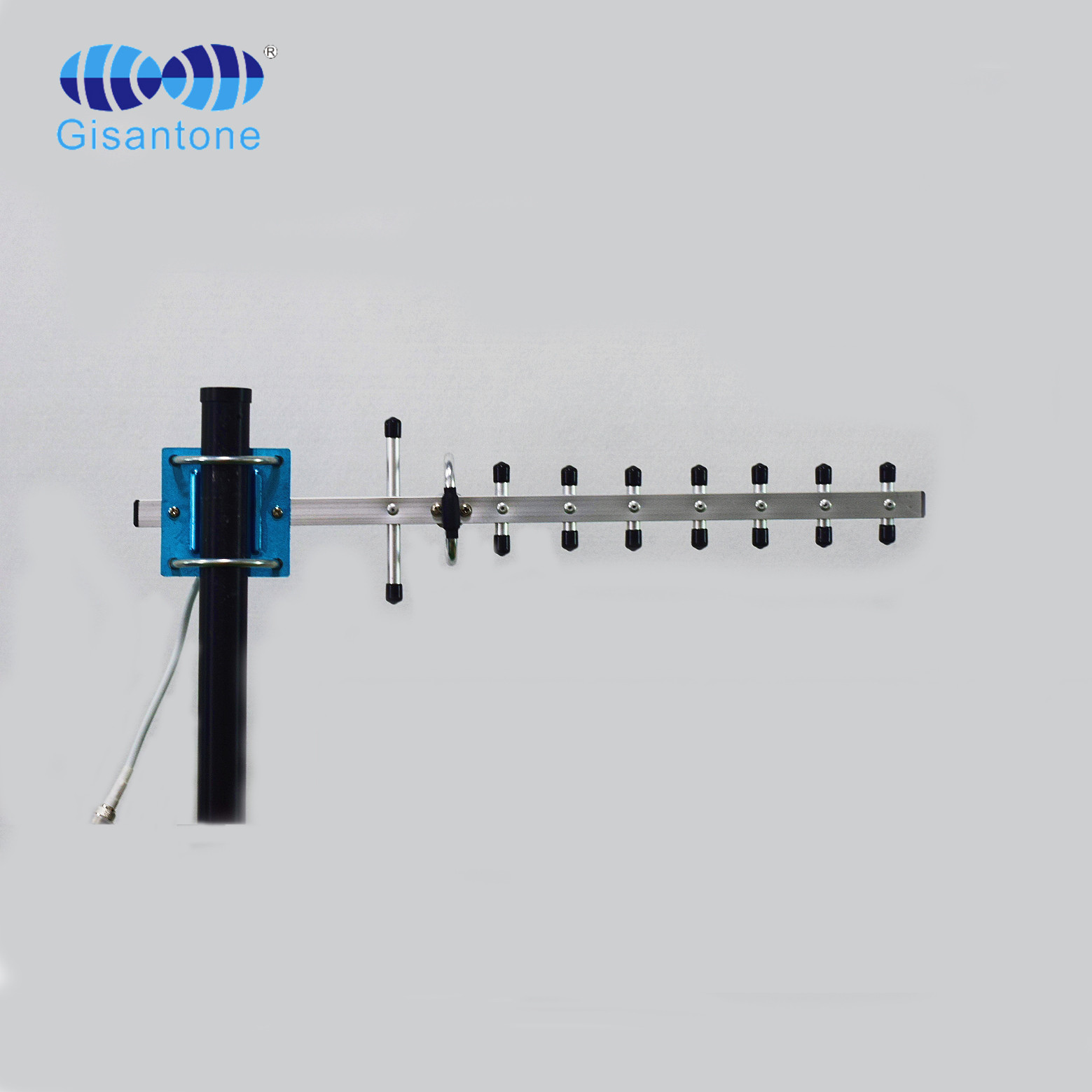

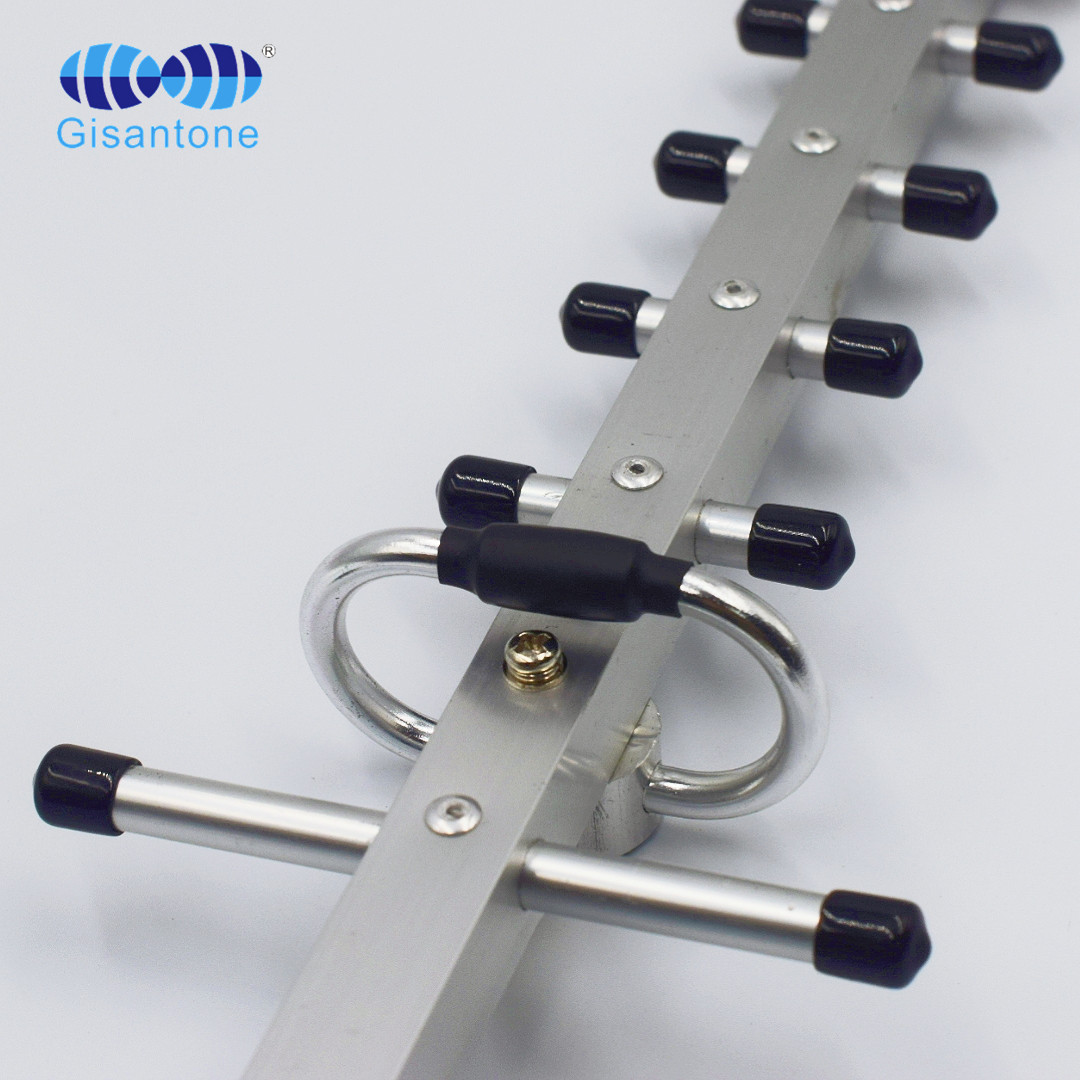

1710-2700MHz 12DBI Yagi antenna
