Electrical Specifications |
|
|
Model No. |
G15022D |
|
Frequency Range |
1700-2700MHz |
|
Gain |
2*9dBi |
|
VSWR |
≤1.5 |
|
Input Impedance |
50Ω |
|
Polarization |
Vertical |
|
Horizontal Half Power Angle |
65°±5 |
|
Vertical Half Power Angle |
30°±2 |
|
Max Input Power |
50W |
|
Front to Back Ratio |
≥ 18 dB |
|
Lightning Protection |
DC Ground |
|
Mechanical Specifications |
|
|
Connector Type |
2*F-K |
|
Cable Type |
RG58/U White |
|
Cable Length |
2*25CM |
|
Working Temperature |
-40℃~﹢65℃ |
|
Antenna Weight |
350g |
|
Size |
210x178x45mm |
|
Pole Diameter |
Φ38~55mm |
|
Rated Wind Velocity |
210km/h |
|
Antenna Cover Material |
ABS |
|
Color |
White |
|
Package Size |
52*39*40CM/20pcs |
|
Weight |
11KG |

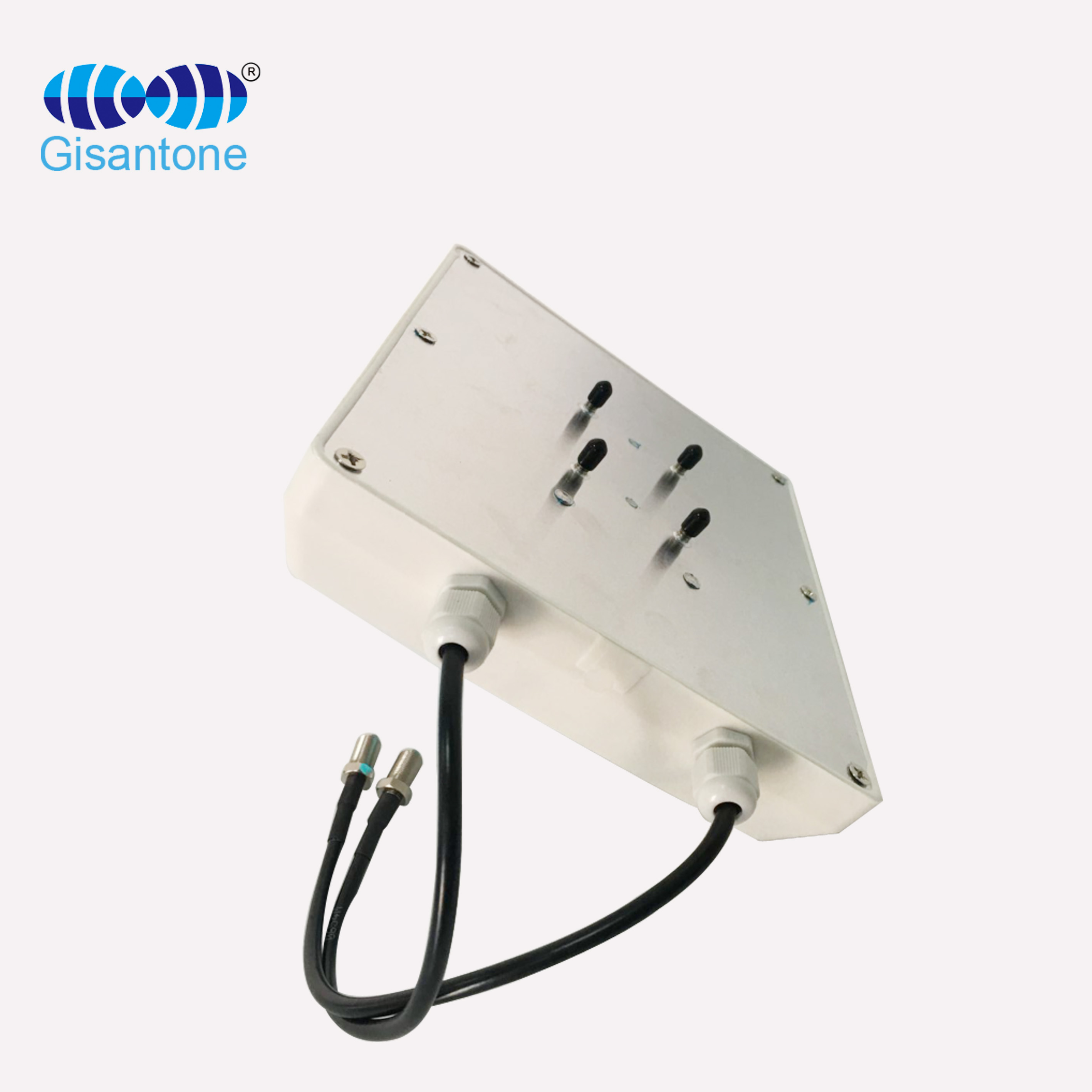

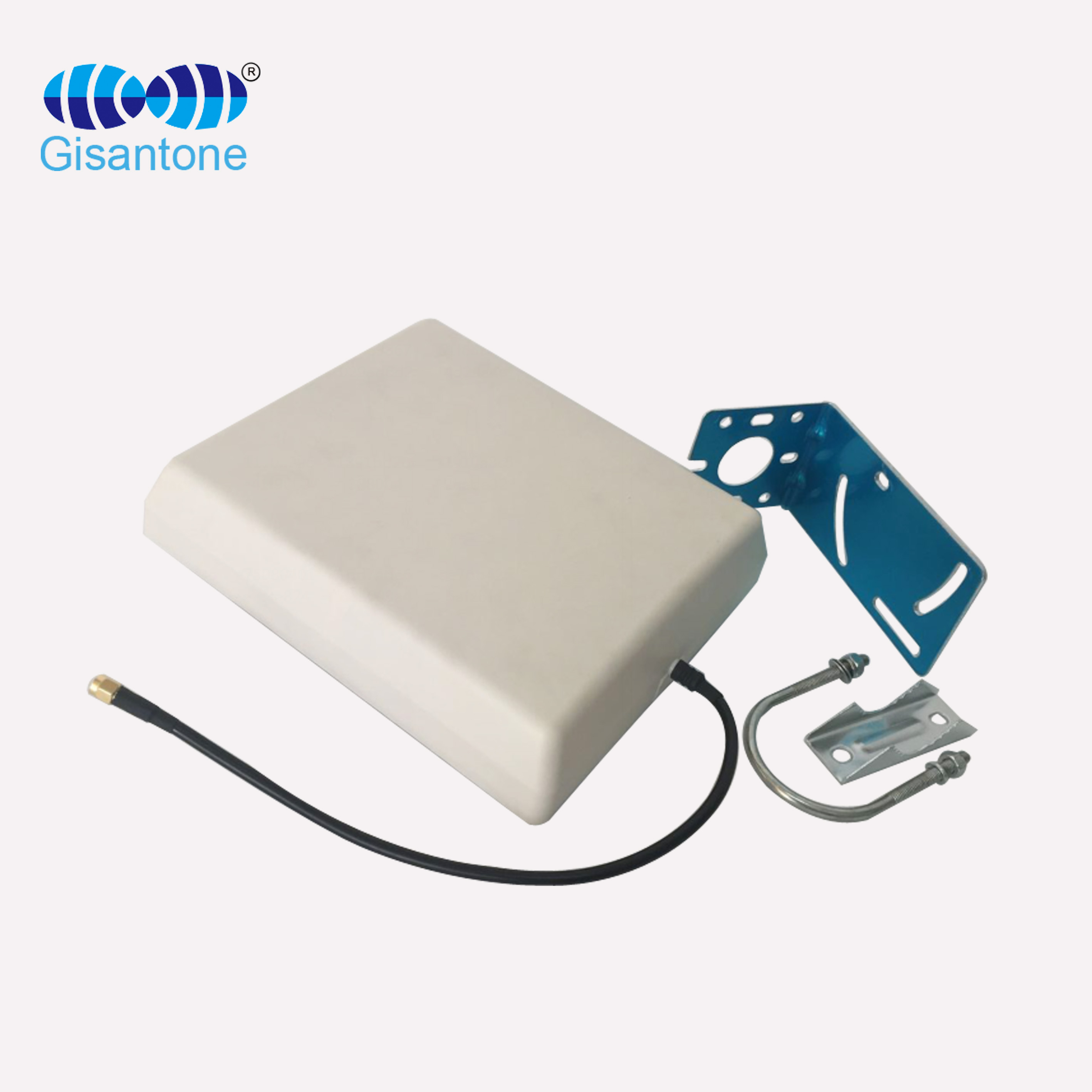

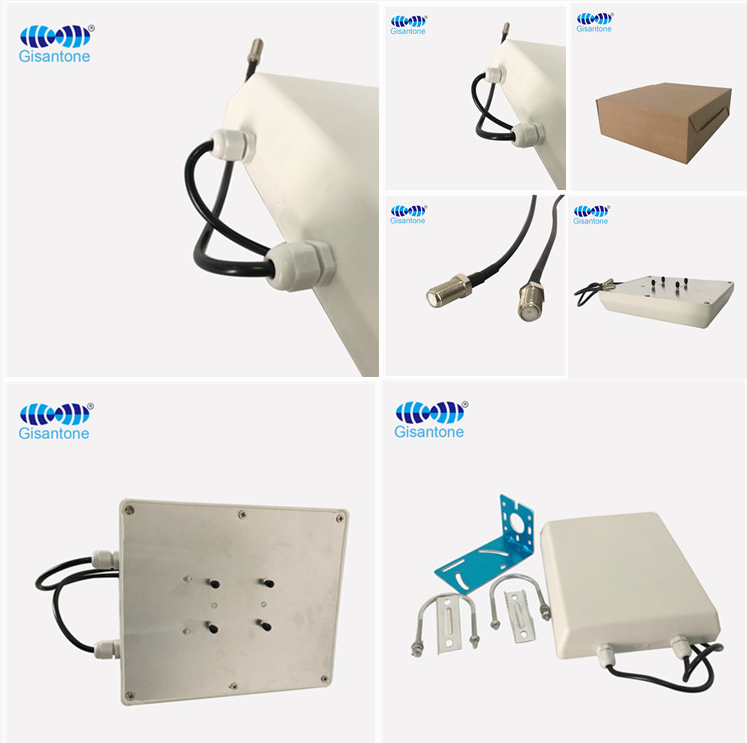

1700/2700MHz 2*9DBI MIMO Panel Antenna
