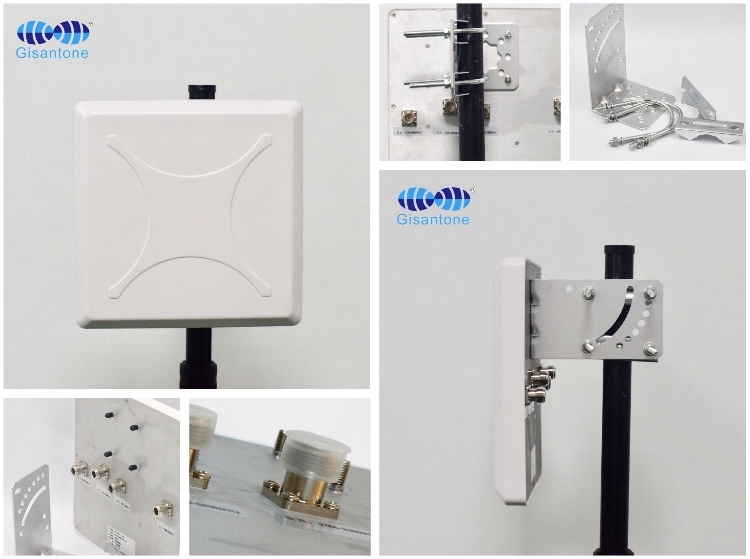

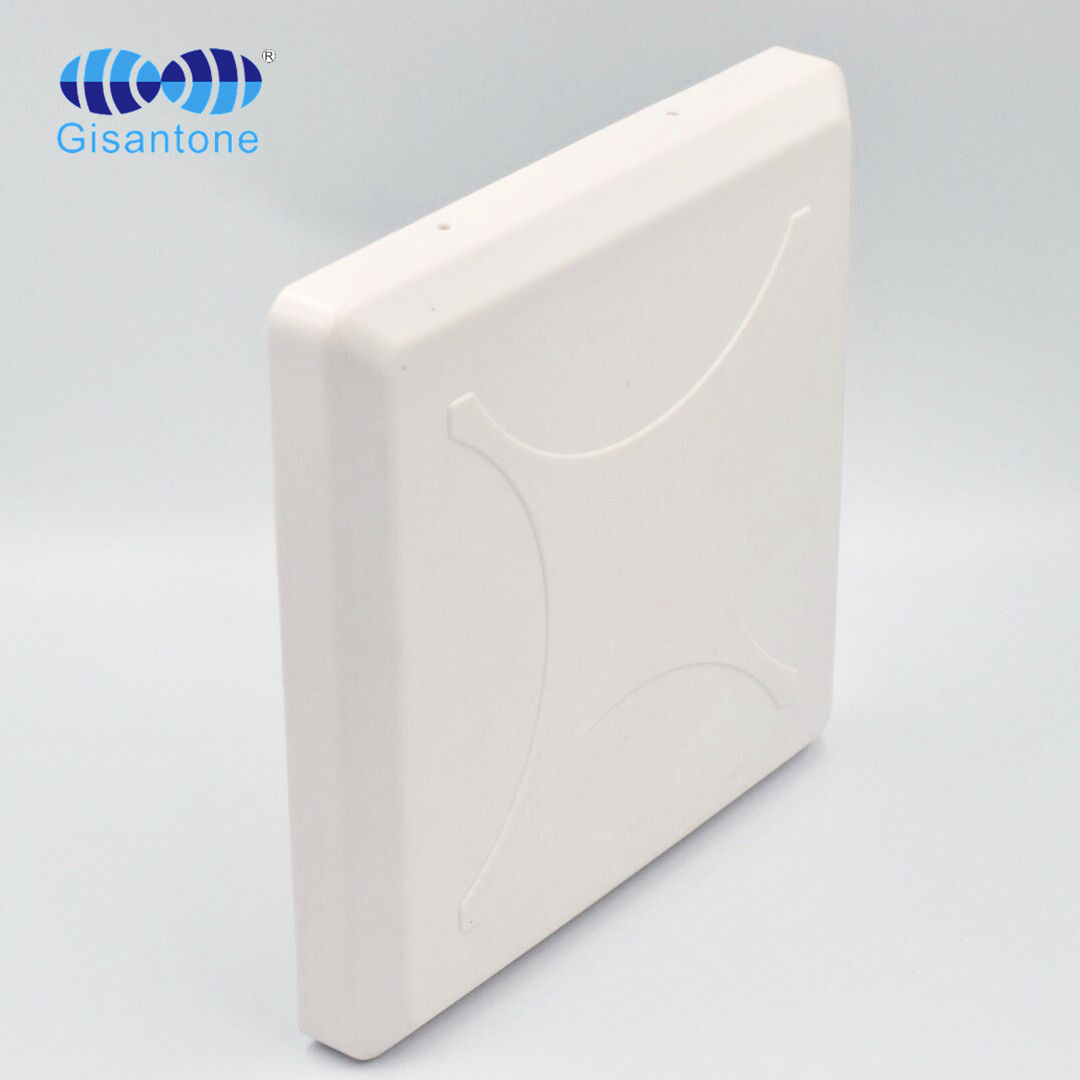

- 名稱：
2.4/5.8G 14DBi MIMO panel antenna
- 型號：
G17012A
- 頻率：
2400-2500/5150-5850MHz
- 增益：
4*14DBI
- 線長：
/
- 接頭：
4*N female
|
Electrical Specifications |
||
|
Model No. |
G17012A |
|
|
Frequency Range |
2400-2500/5150-5850MHz |
|
|
Gain |
12dBi |
14dBi |
|
VSWR |
≤1.5 |
≤2.0 |
|
Input Impedance |
50Ω |
|
|
Polarization |
Vertical |
|
|
Horizontal Half Power Angle |
65°±5 |
65°±5 |
|
Vertical Half Power Angle |
20°±2 |
35°±2 |
|
Max Input Power |
100W |
|
|
Front to Back Ratio |
≥ 25 dB |
|
|
Isolation Between Ports |
≥ 28 |
|
|
Lightning Protection |
DC Ground |
|
|
Mechanical Specifications |
||
|

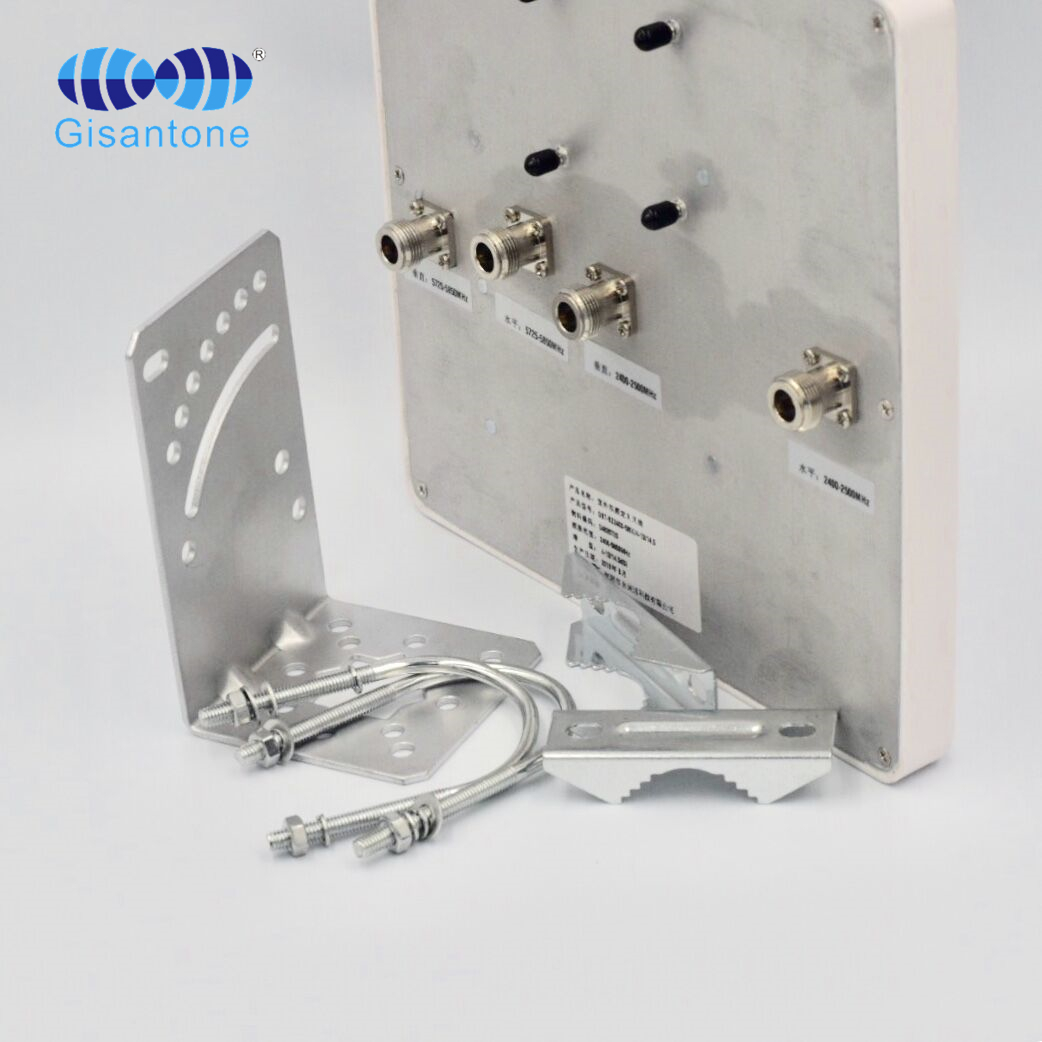

Connector Type |
4*N female |
|
|
Working Temperature |
-40℃~﹢65℃ |
|
|

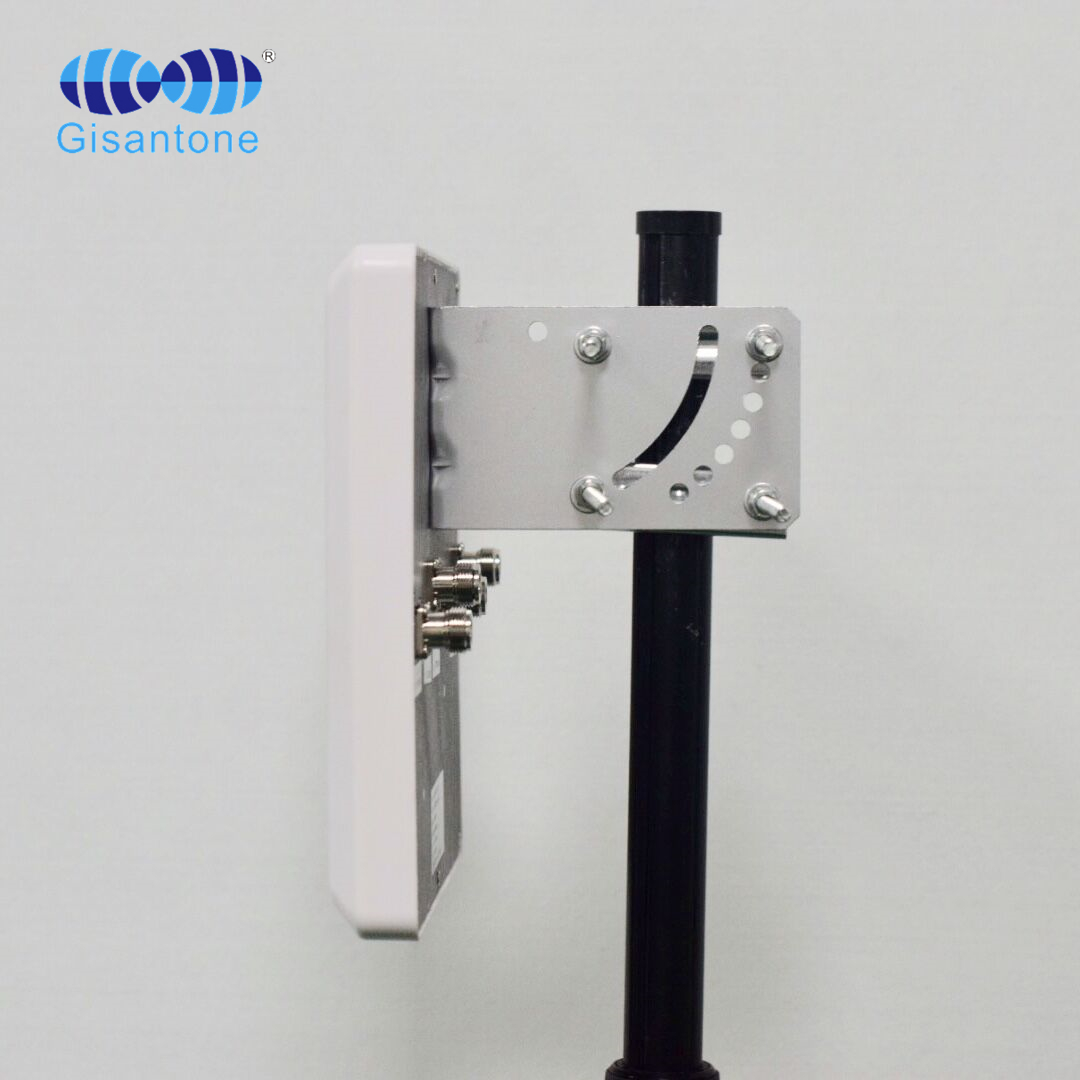

Pole Diameter |
Φ35~φ50mm |
|
|
Antenna Weight |
0.9kg |
|
|
Size |
226x226x50mm |
|
|
Rated Wind Velocity |
210km/h |
|
|
Antenna Cover Material |
ABS |
|
|
Color |
White |
|
