- Name：

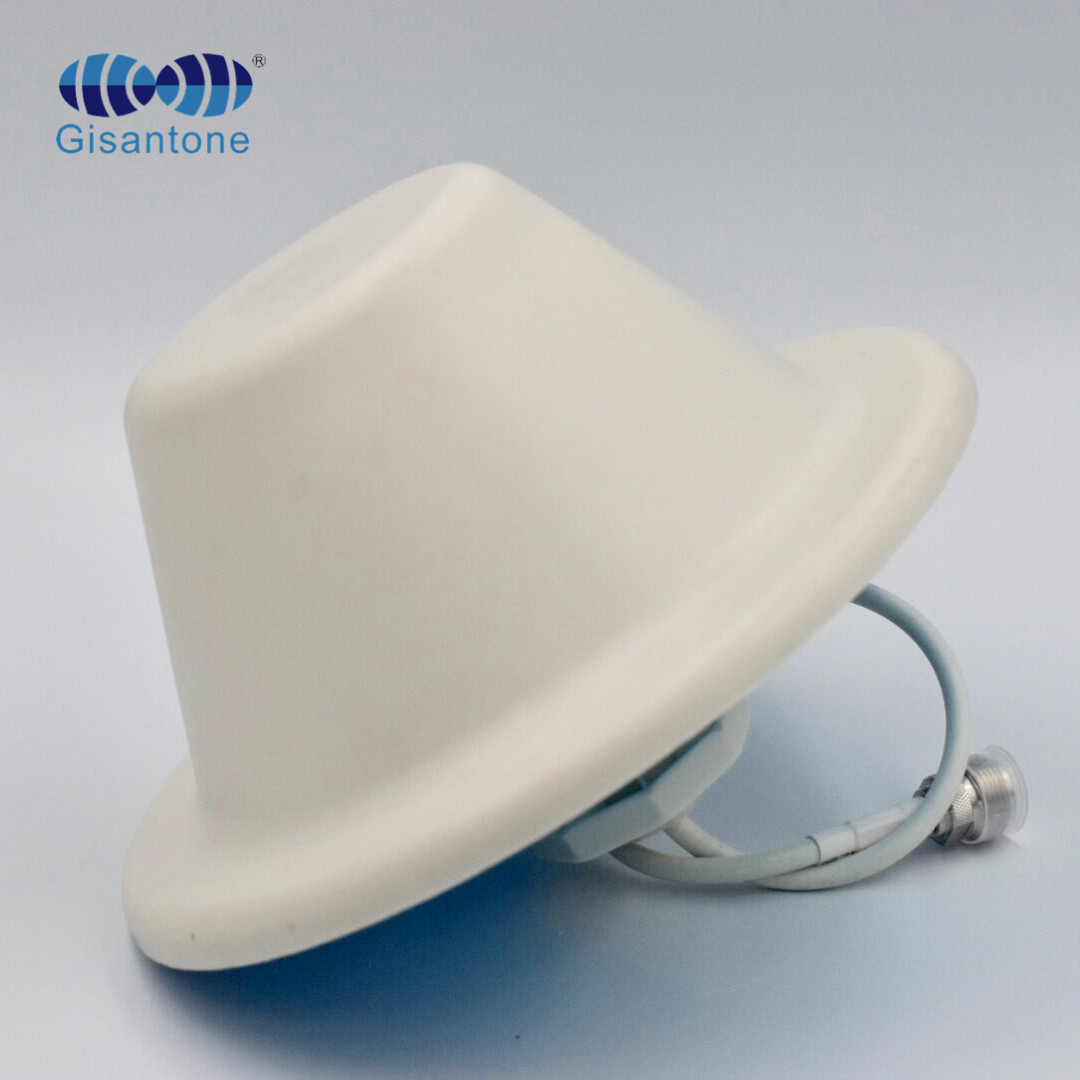

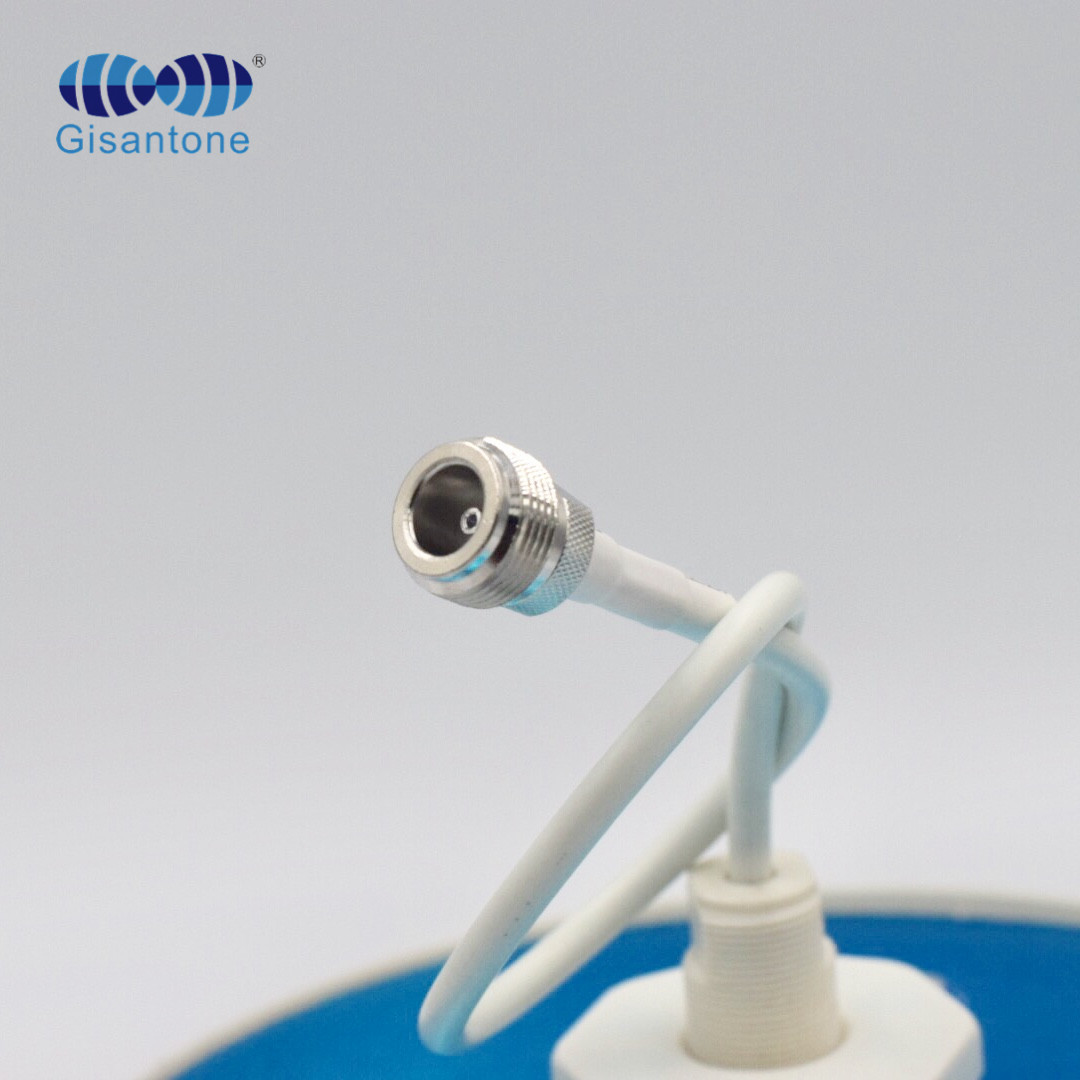

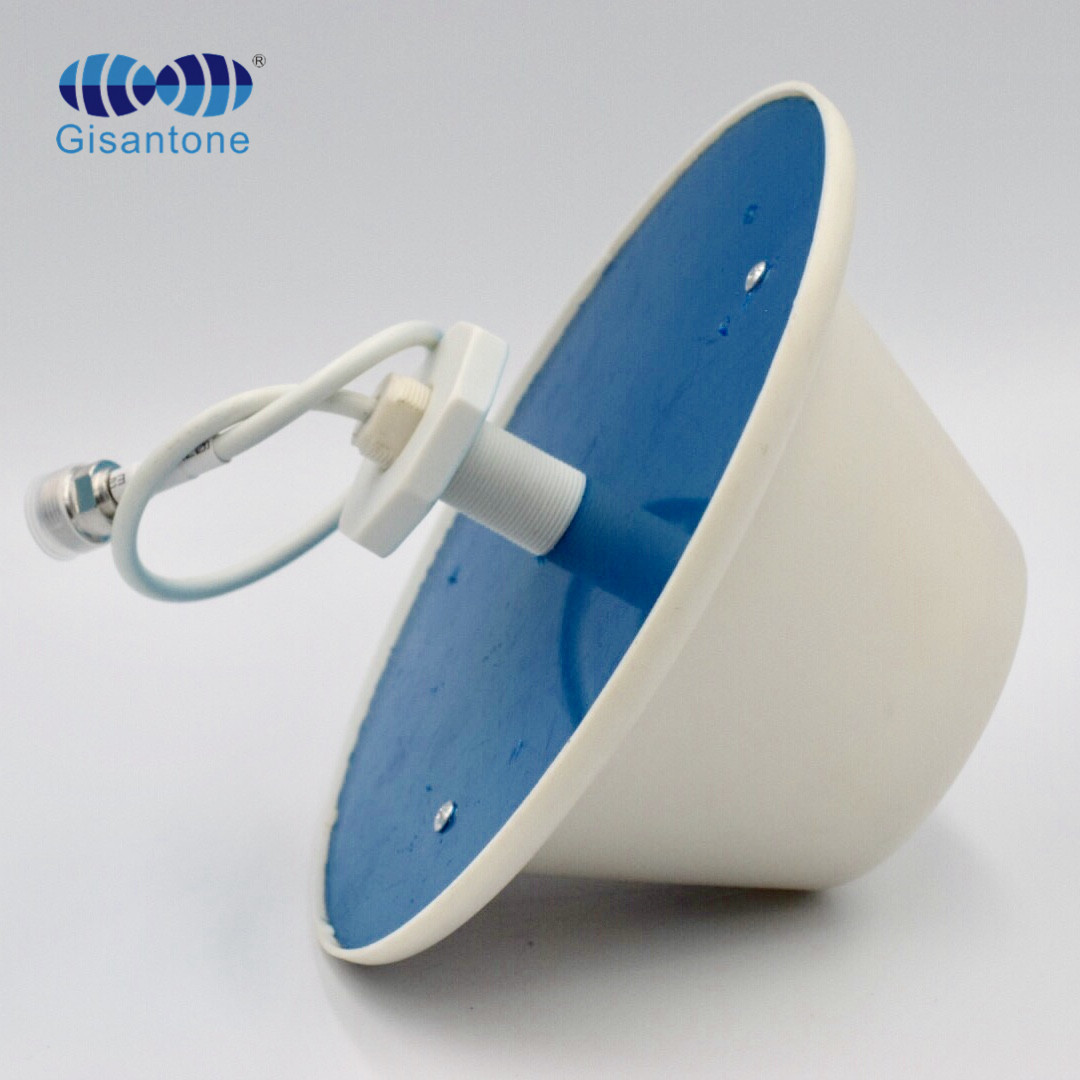

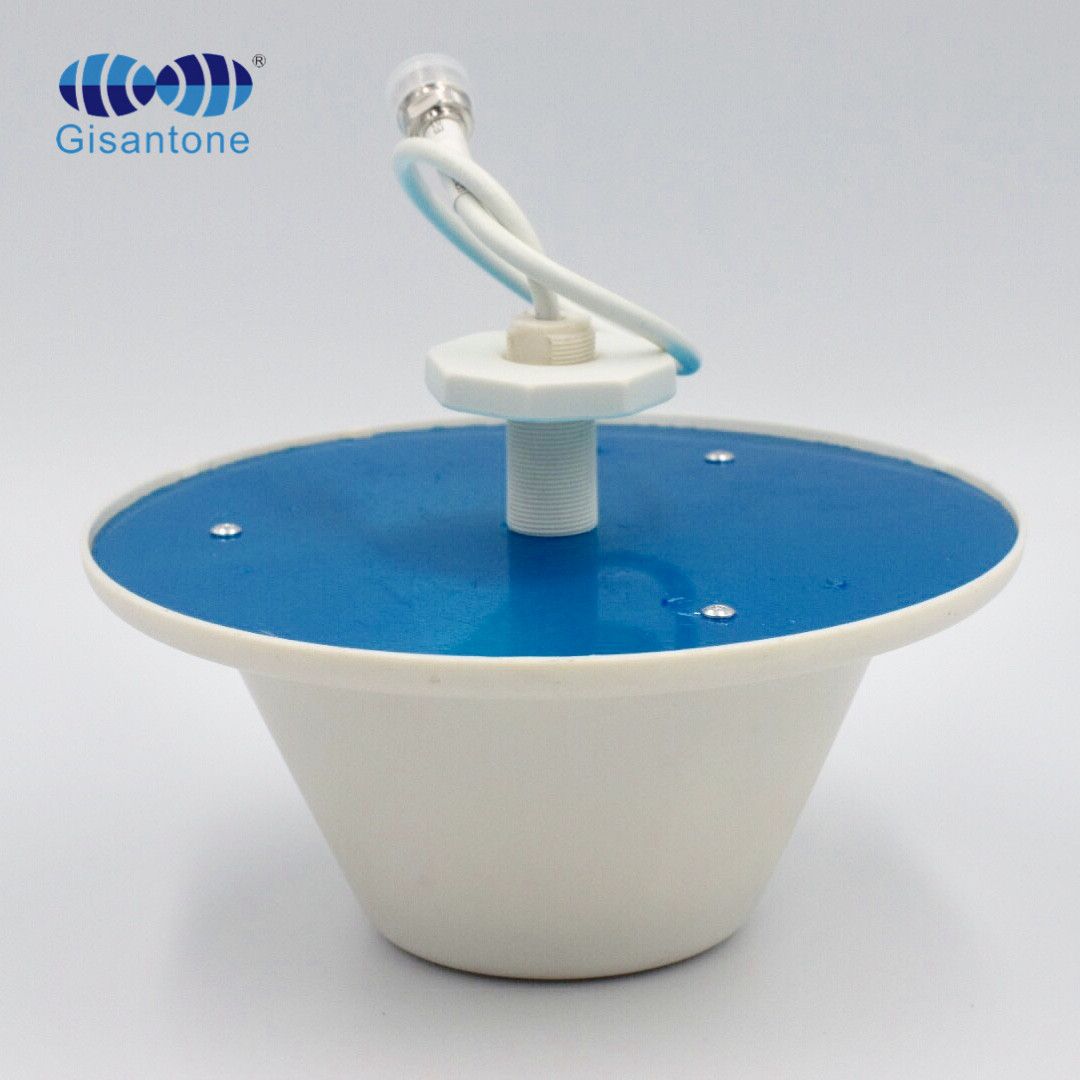

N female 3DBI 4G ceiling antenna
- Model No.：
G15611B
- Frequency Range ：
806-960/1710-2700MHz
- Gain：
3DBI
- Cable Length：
0.3M
- Connector：
N female
|
Electrical Specifications |
||
|
Model No. |
G15611B |
|
|
Frequency Range |
806-960MHz |
1710-2700MHz |
|
Gain |
3Dbi |
|
|
VSWR |
≤1.5 |
|
|
Input Impedance |
50Ω |
|
|
Polarization |
Vertical |
|
|
Horizontal Half Power Angle |
360° |
|
|
Vertical Half Power Angle |
85° |
|
|
Max Input Power |
50W |
|
|
Lightning Protection |
DC Ground |
|
|
Mechanical Specifications |
||
|
Connector Type |
N-female |
|
|
Cable Type |
RG58U White |
|
|
Cable Length |
0.3M |
|
|
Working Temperature |
-40℃~﹢65℃ |
|
|
Antenna Weight |
0.27kg |
|
|
Size |
Φ185*85mm |
|
|
Rated Wind Velocity |
210km/h |
|
|
Antenna cover material |
ABS |
|
|
Color |
White |
|
N female 3DBI 4G ceiling antenna
