- Name：

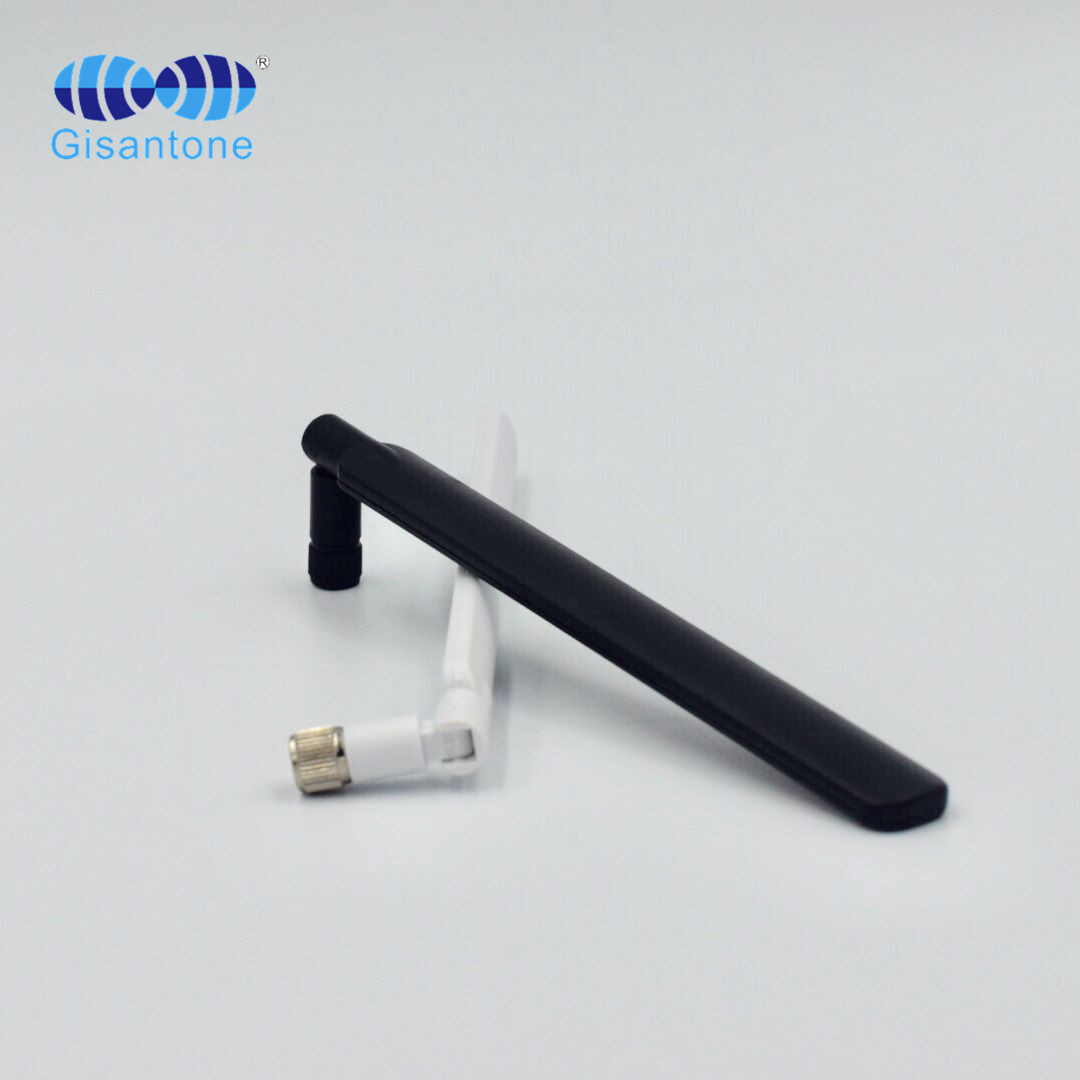

4G huawei router rubber antenna
- Model No.：
G15599A
- Frequency Range ：
698-960/1710-2700MHz
- Gain：
3DBI
- Cable Length：
/
- Connector：

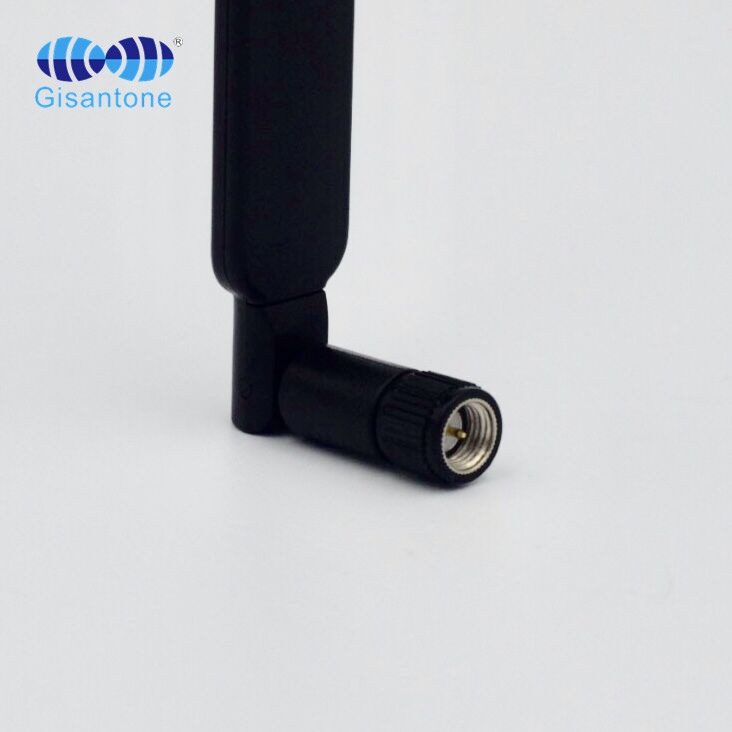

SMA male
|
Electrical Specifications |
|
|
Model No. |
G15599A |
|
Frequency Range |
698-960/1710-2700MHz |
|
Gain |
3Dbi |
|
VSWR |
≤1.5 |
|
Input Impedance |
50Ω |
|
Polarization |
Vertical |
|
Horizontal Half Power Angle |
360° |
|
Max Input Power |
50W |
|
Lightning Protection |
DC Ground |
|
Mechanical Specifications |
|
|
Connector Type |
SMA male |
|
Cable Type |
/ |
|
Cable Length |
/ |
|
Working Temperature |
-40℃~﹢65℃ |
|
Antenna Weight |
16.5g |
|
Size |
Φ10 x (190±5) (mm) |
|
Antenna color |
Black |
4G huawei router rubber antenna
