- Name：

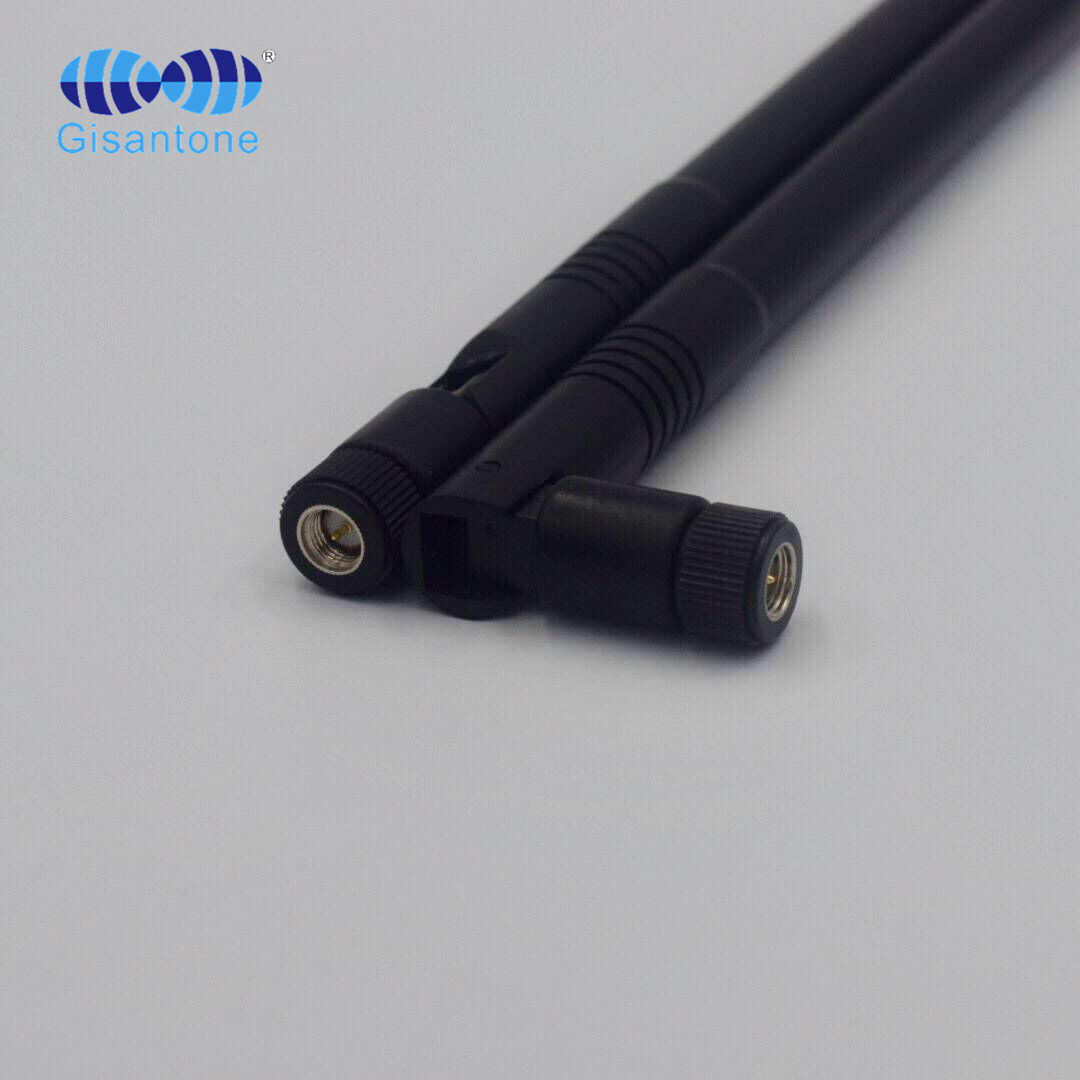

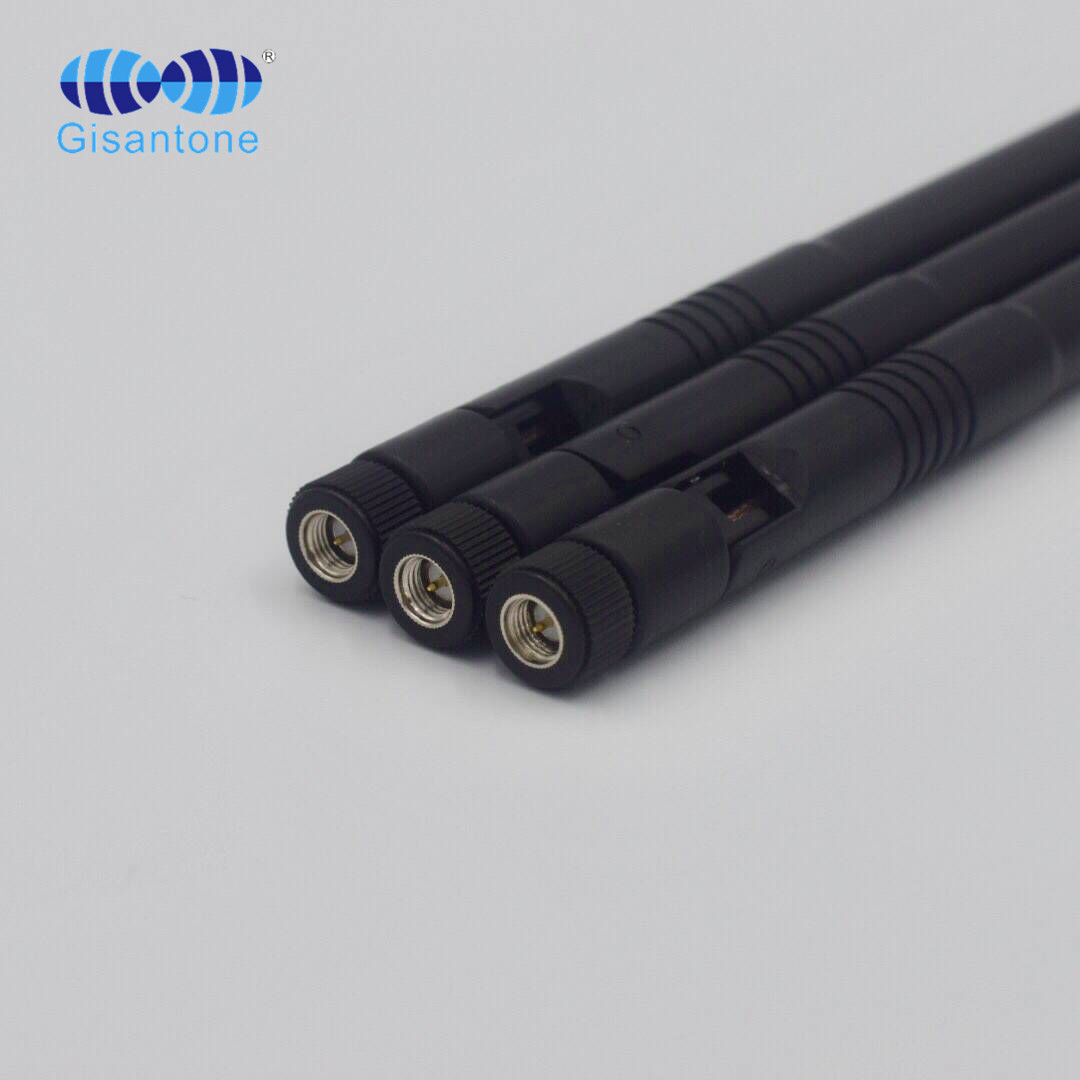

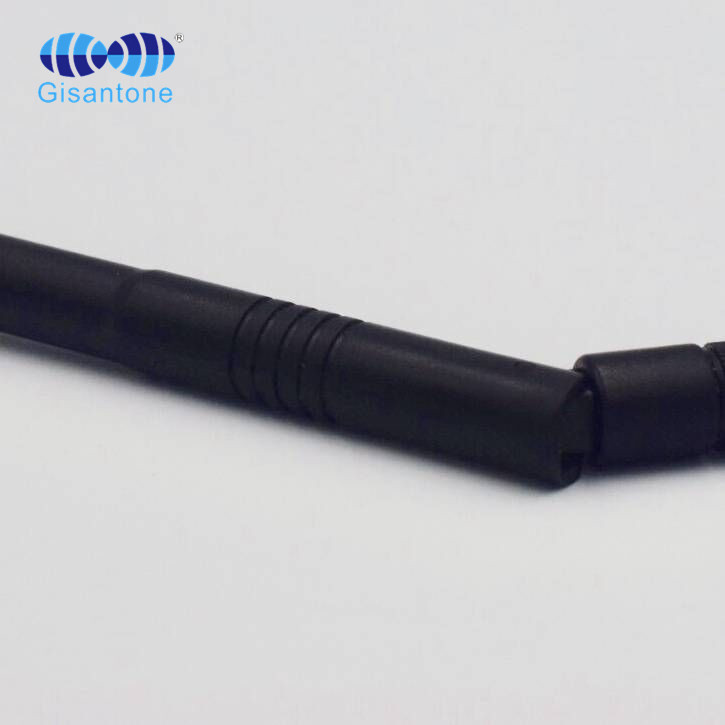

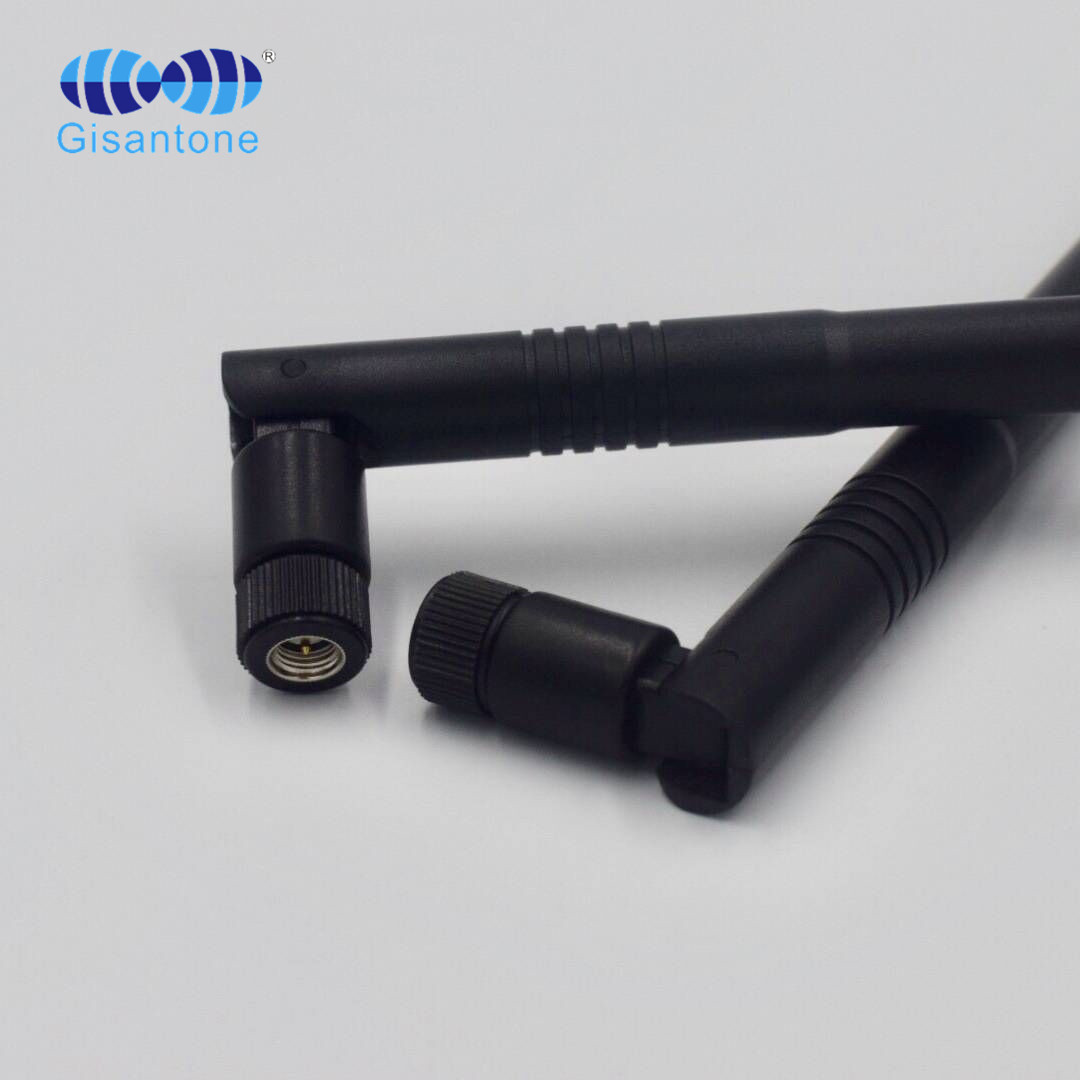

850-960MHz 5DBI Whip Antenna
- Model No.：
G15518A
- Frequency Range ：
850-960MHz
- Gain：
5DBI
- Cable Length：
/
- Connector：
SMA male
|
Electrical Specifications |
|
|
Model No. |
G15518A |
|
Frequency Range |
850-960MHz |
|
Gain |
5Dbi |
|
VSWR |
≤3.5 |
|
Input Impedance |
50Ω |
|
Polarization |
Vertical |
|
Horizontal Half Power Angle |
360° |
|
Max Input Power |
50W |
|
Lightning Protection |
DC Ground |
|
Mechanical Specifications |
|
|
Connector Type |
SMA-J |
|
Working Temperature |
-40℃~﹢65℃ |
|
Antenna Weight |
33g |
|
Size |
Φ13*(390±2)mm |
|
Color |
Black |
850-960MHz 5DBI Whip Antenna
