產(chǎn)品中心
2.4G WI-FI/WIMAX Antenna

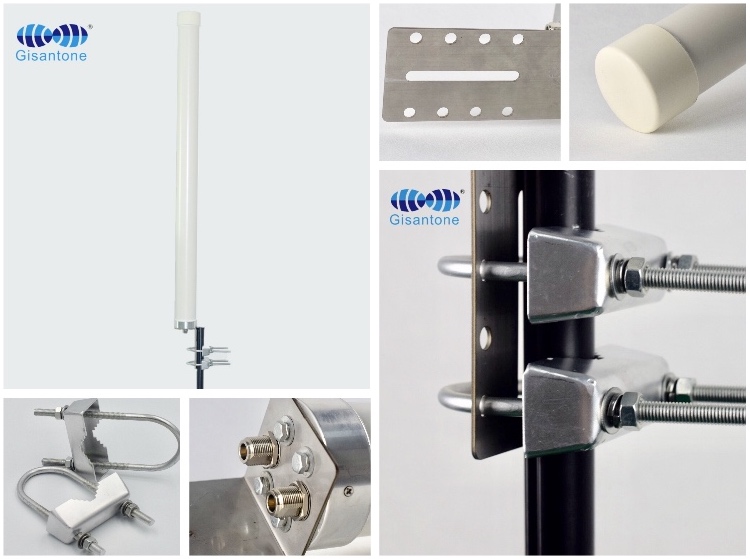

2.4MHz 15DBI MIMO fiberglass antenna
  • Name：

    2.4MHz 15DBI MIMO fiberglass antenna

  • Model No.：

    G17103A

  • Frequency Range ：

    2400-2500MHz

  • Gain：

    2*15DBI

  • Cable Length：

    /

  • Connector：

    2* N female

Share：
Product parameters
Download

Electrical Specifications

Model No.

G17103A

Frequency Range

2400-2500MHz

Gain

2*15Dbi

VSWR

≤1.5

Input Impedance

50Ω

Polarization

Vertical

Horizontal Half Power Angle

360°

Vertical Half Power Angle

6°

Front to Back Ratio

≥15dB

Max Input Power

100W

Lightning Protection

DC Ground

Mechanical Specifications

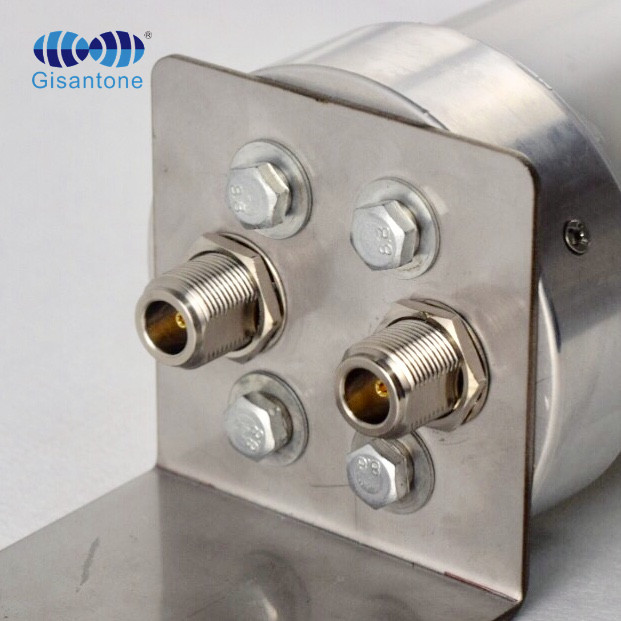

Connector Type

2*N female

Working Temperature

-40℃~﹢65℃

Antenna Weight

2.85kg

Size

Φ75*1265mm

Rated Wind Velocity

210km/h

Cover Material

PVC

Color

White
